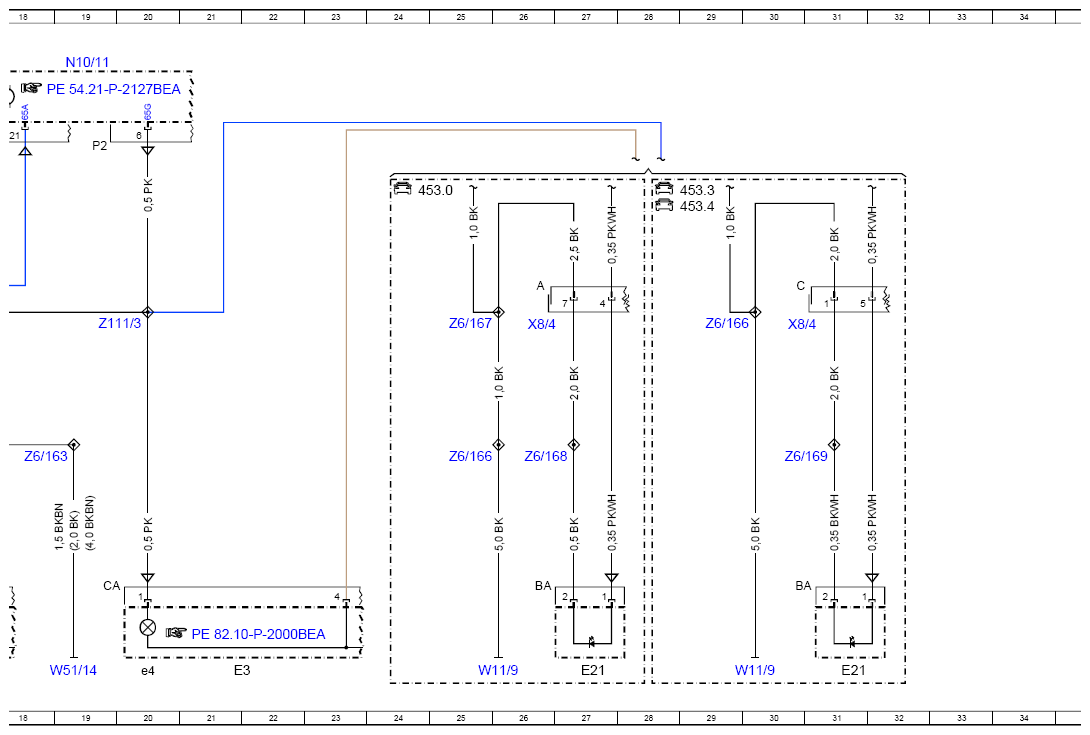

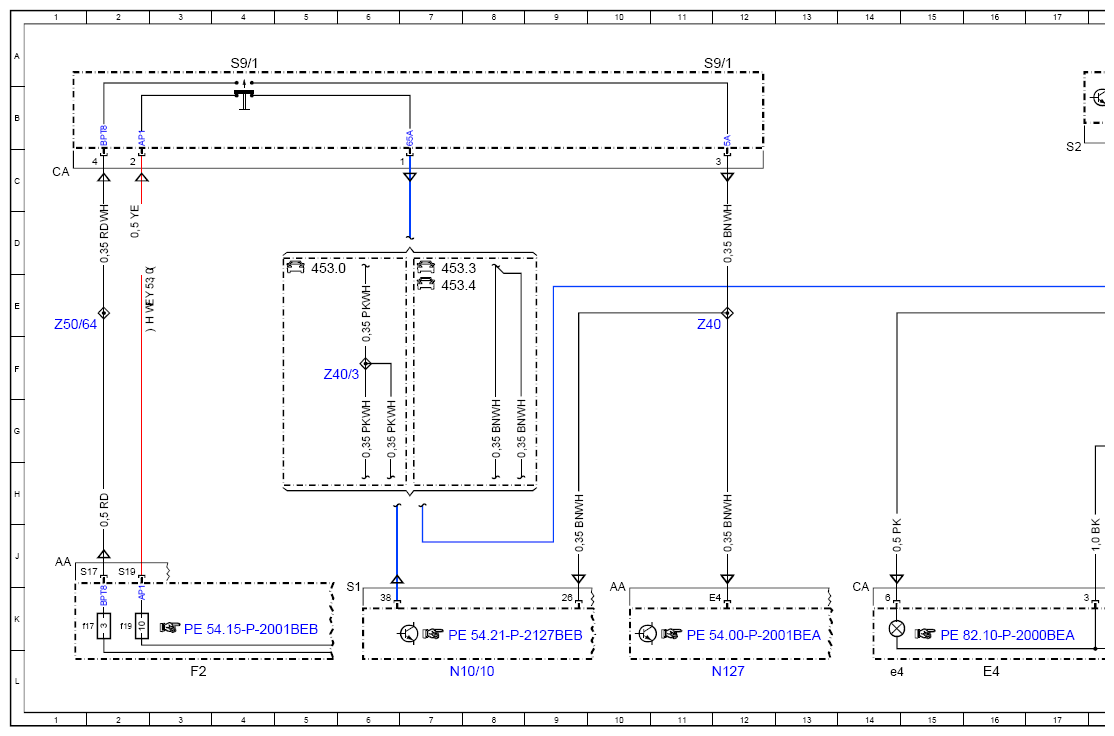

Wiring Diagram Of Brake Lamp - PE82.10-P-2300-97BEA
MODEL 453.091/391/491 up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|

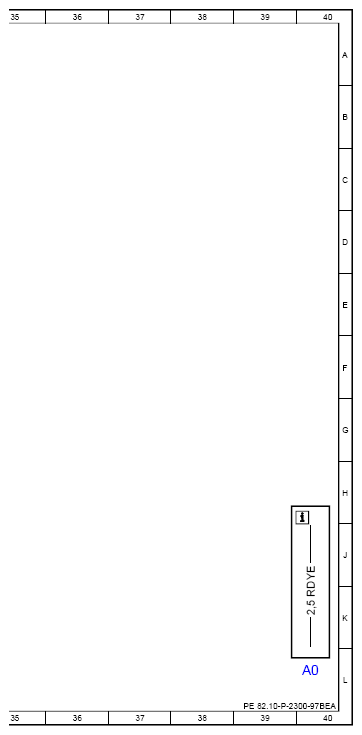

| A0 | Use of wiring diagrams | 40L |
| E21 | Center stop lamp | 27L |
| E21 | Center stop lamp | 31L |
| E3 | Left rear lamp unit | 21L |
| E3e4 | Left stop lamp | 20L |
| E4 | Right rear lamp unit | 16L |
| E4e4 | Right stop lamp | 14L |
| F2 | Vehicle interior fuse and relay module | 3L |
| F2f17 | Fuse 17 | 1K |
| F2f19 | Fuse 19 | 2K |
| N10/10 | Center SAM control unit | 7L |
| N10/11 | Driver SAM control unit | 19A |
| N127 | Electric drive control unit | 12L |
| S9/1 | Stop lamp switch | 4A |
| S9/1 | Stop lamp switch | 11A |
| W11/9 | Left rear ground point | 25L |
| W11/9 | Left rear ground point | 30L |
| W51/14 | Right rear frame ground connection | 19L |
| X8/4 | Trunk lid electrical connector | 26E |
| X8/4 | Trunk lid electrical connector | 30E |
| Z111/3 | Brake light actuation connector sleeve | 20E |
| Z40 | Stop lamp signal connector sleeve | 11E |
| Z40/3 | Stop lamp connector sleeve | 6F |
| Z50/64 | Circuit 30 (fused) connector sleeve | 1E |
| Z6/163 | Ground connection connector sleeve | 18G |
| Z6/166 | Circuit 31 connector sleeve | 25G |
| Z6/166 | Circuit 31 connector sleeve | 29E |
| Z6/167 | Circuit 31 connector sleeve | 25E |
| Z6/168 | Circuit 31 connector sleeve | 26G |
| Z6/169 | Circuit 31 connector sleeve | 31G |
