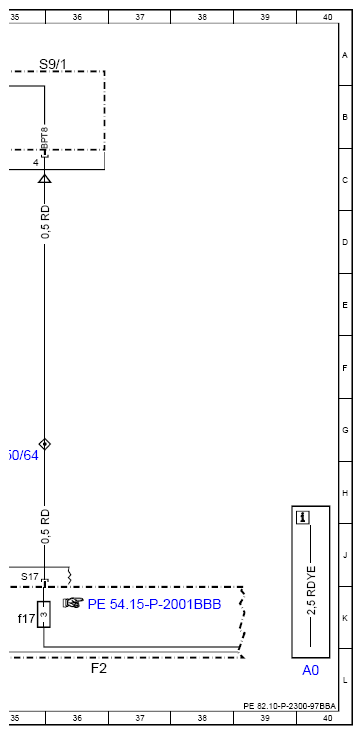

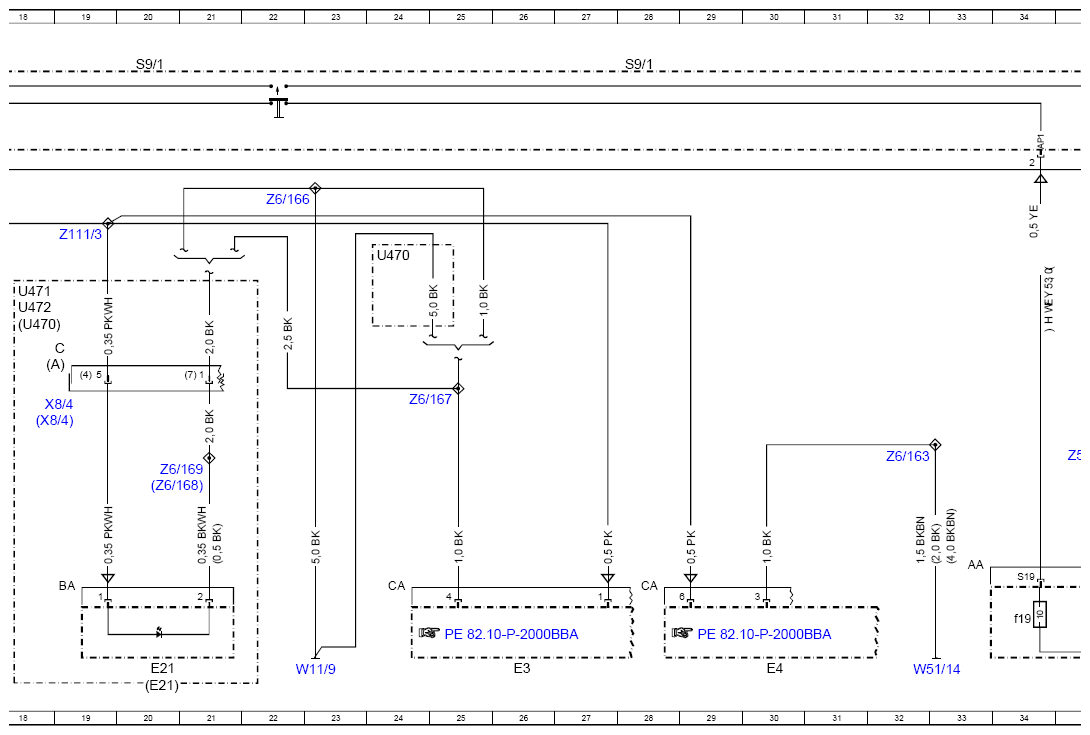

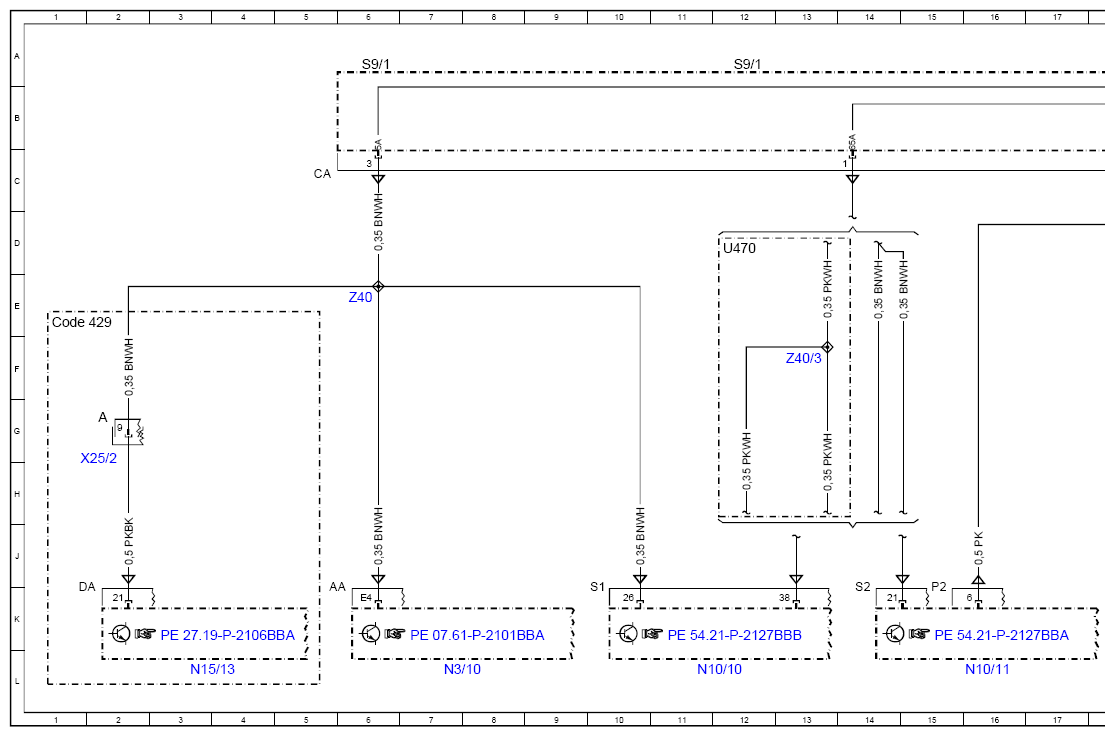

Wiring Diagram Of Brake Lamp - PE82.10-P-2300-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| Code 429 | twinamic | 1E |
| E21 | Center stop lamp | 20L |
| E21 | Center stop lamp | 20L |
| E3 | Left rear lamp unit | 26L |
| E4 | Right rear lamp unit | 30L |
| F2 | Vehicle interior fuse and relay module | 36L |
| F2f17 | Fuse 17 | 35K |
| F2f19 | Fuse 19 | 34K |
| N10/10 | Center SAM control unit | 11L |
| N10/11 | Driver SAM control unit | 16L |
| N15/13 | Double clutch transmission control unit | 3L |
| N3/10 | ME-SFI [ME] control unit | 7L |
| S9/1 | Stop lamp switch | 6A |
| S9/1 | Stop lamp switch | 12A |
| S9/1 | Stop lamp switch | 20A |
| S9/1 | Stop lamp switch | 28A |
| S9/1 | Stop lamp switch | 35A |
| U470 | Valid for model 453.0 | 12D |
| U470 | Valid for model 453.0 | 18E |
| U470 | Valid for model 453.0 | 24D |
| U471 | Valid for model 453.3 | 18E |
| U472 | Valid for model 453.4 | 18E |
| W11/9 | Left rear ground point | 23L |
| W51/14 | Right rear frame ground connection | 32L |
| X25/2 | Engine compartment/vehicle interior electrical connector | 2H |
| X8/4 | Trunk lid electrical connector | 19G |
| X8/4 | Trunk lid electrical connector | 18G |
| Z111/3 | Brake light actuation connector sleeve | 19D |
| Z40 | Stop lamp signal connector sleeve | 6E |
| Z40/3 | Stop lamp connector sleeve | 13F |
| Z50/64 | Circuit 30 (fused) connector sleeve | 35G |
| Z6/163 | Ground connection connector sleeve | 32G |
| Z6/166 | Circuit 31 connector sleeve | 22C |
| Z6/167 | Circuit 31 connector sleeve | 25G |
| Z6/168 | Circuit 31 connector sleeve | 20H |
| Z6/169 | Circuit 31 connector sleeve | 21H |
