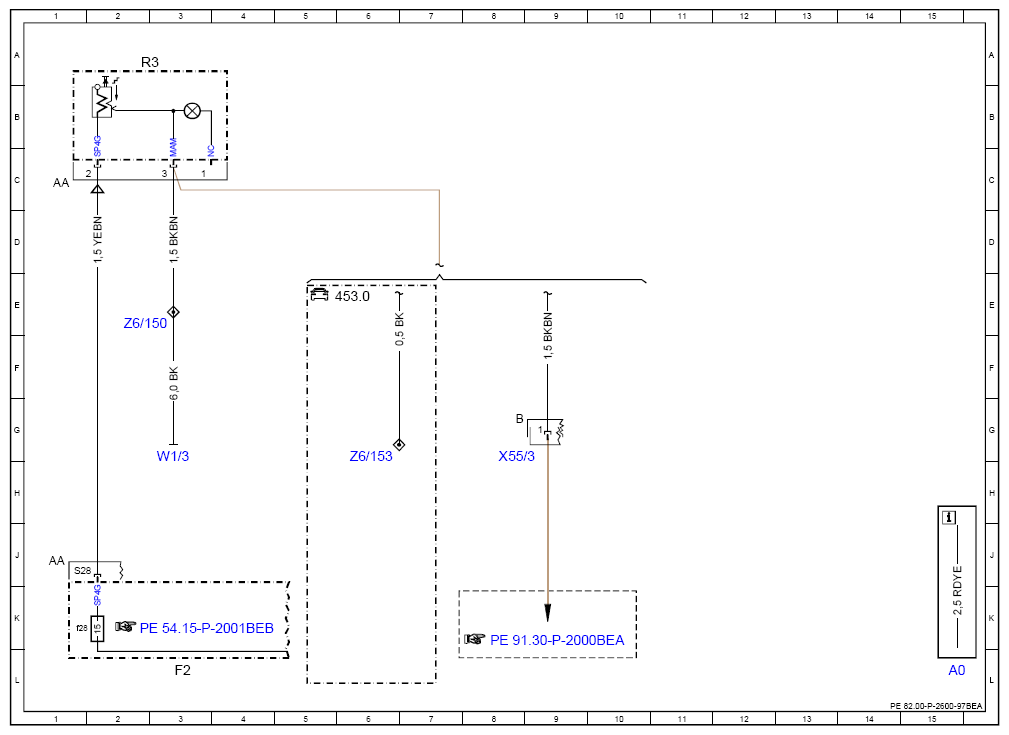

Wiring Diagram Cigar Lighter - PE82.00-P-2600-97BEA
MODEL 453.091/391/491 up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| F2 | Vehicle interior fuse and relay module | 3L |
| F2f28 | Fuse 28 | 1K |
| R3 | Front cigarette lighter with ashtray illumination | 2A |
| W1/3 | Left cockpit ground point | 3H |
| X55/3 | Driver seat connector block | 8H |
| Z6/150 | Ground connection connector sleeve | 2E |
| Z6/153 | Ground connection connector sleeve | 6G |
