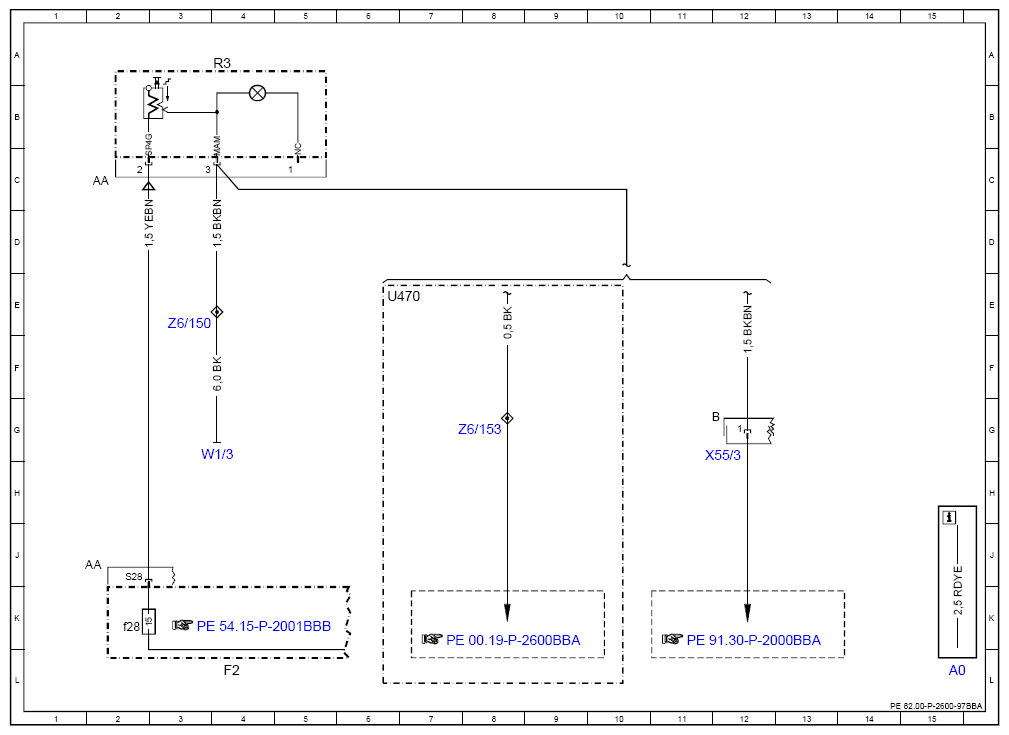

Wiring Diagram Cigar Lighter - PE82.00-P-2600-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| F2 | Vehicle interior fuse and relay module | 4L |
| F2f28 | Fuse 28 | 2K |
| R3 | Front cigarette lighter with ashtray illumination | 4A |
| U470 | Valid for model 453.0 | 6E |
| W1/3 | Left cockpit ground point | 3G |
| X55/3 | Driver seat connector block | 12G |
| Z6/150 | Ground connection connector sleeve | 3E |
| Z6/153 | Ground connection connector sleeve | 8G |
