Search And Symbol Illumination Electrical Function Schematic - PE82.20-P-2054-97BBA
MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Combination switch, status | 5E |
| 2 | Circuit 58d, status | 21E |
| 3 | Switch illumination, actuation | 9D |
| 3 | Switch illumination, actuation | 12D |
| 3 | Switch illumination, actuation | 9H |
| 3 | Switch illumination, actuation | 11H |
| 3 | Switch illumination, actuation | 14H |
| 3 | Switch illumination, actuation | 17H |
| 3 | Switch illumination, actuation | 18B |
| 3 | Switch illumination, actuation | 21B |
| 3 | Switch illumination, actuation | 26B |
| 3 | Switch illumination, actuation | 32B |
| 3 | Switch illumination, actuation | 20G |
| 3 | Switch illumination, actuation | 23G |
| 3 | Switch illumination, actuation | 25G |
| 3 | Switch illumination, actuation | 28G |
| 3 | Switch illumination, actuation | 31G |
| 3 | Switch illumination, actuation | 34G |
| 3 | Switch illumination, actuation | 37B |
| 3 | Switch illumination, actuation | 38F |
| 3 | Switch illumination, actuation | 37K |

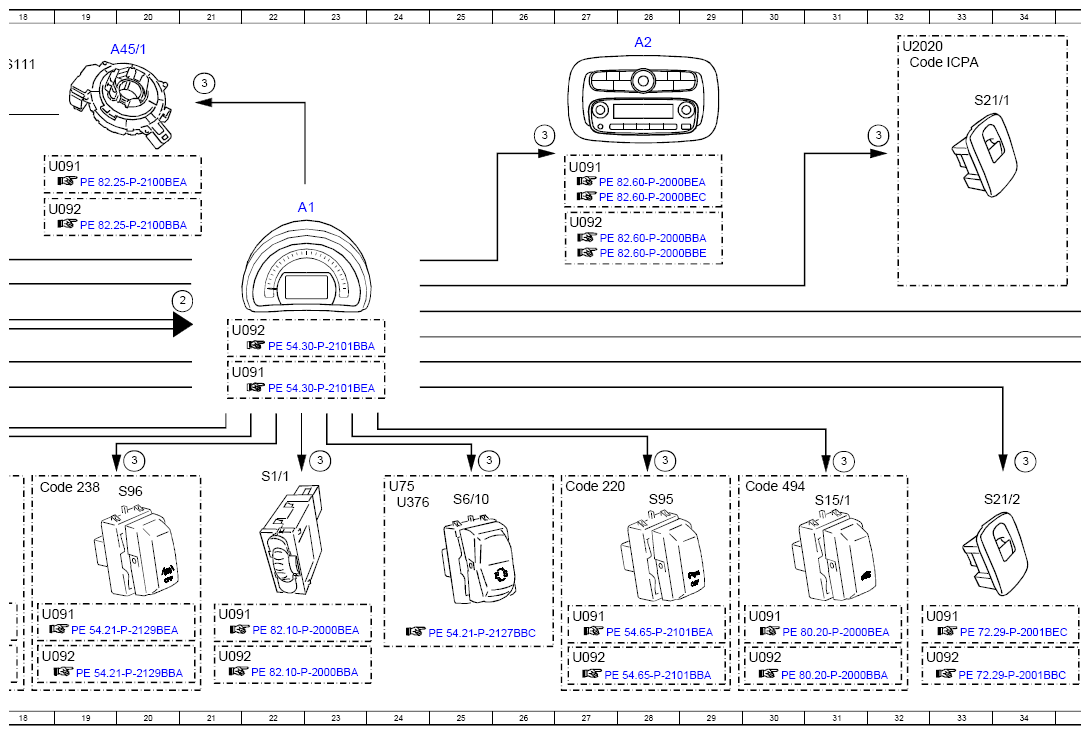

| A1 | Instrument cluster | 22D |
| A2 | Radio | 28A |
| A45/1 | Steering wheel clock spring contact | 20A |
| CAN B | Interior CAN | 15E |
| Code 220 | Rear parking assist | 27H |
| Code 238 | ACTIVE LANE KEEPING ASSIST | 18H |
| Code 252 | Collision warning system (FCW) | 15H |
| Code 440 | Cruise control | 14C |
| Code 494 | USA version | 30H |
| Code 873 | Seat heater | 37A |
| Code B03 | Direct starting | 13H |
| Code E55 | Folding roof | 10H |
| Code 177 | Manual air conditioning | 10A |
| Code 178 | Heating system | 10A |
| Code ICPA | Standard equipment | 32A |
| Code U14 | CIimate package | 7A |
| Code U14 | CIimate package | 37A |

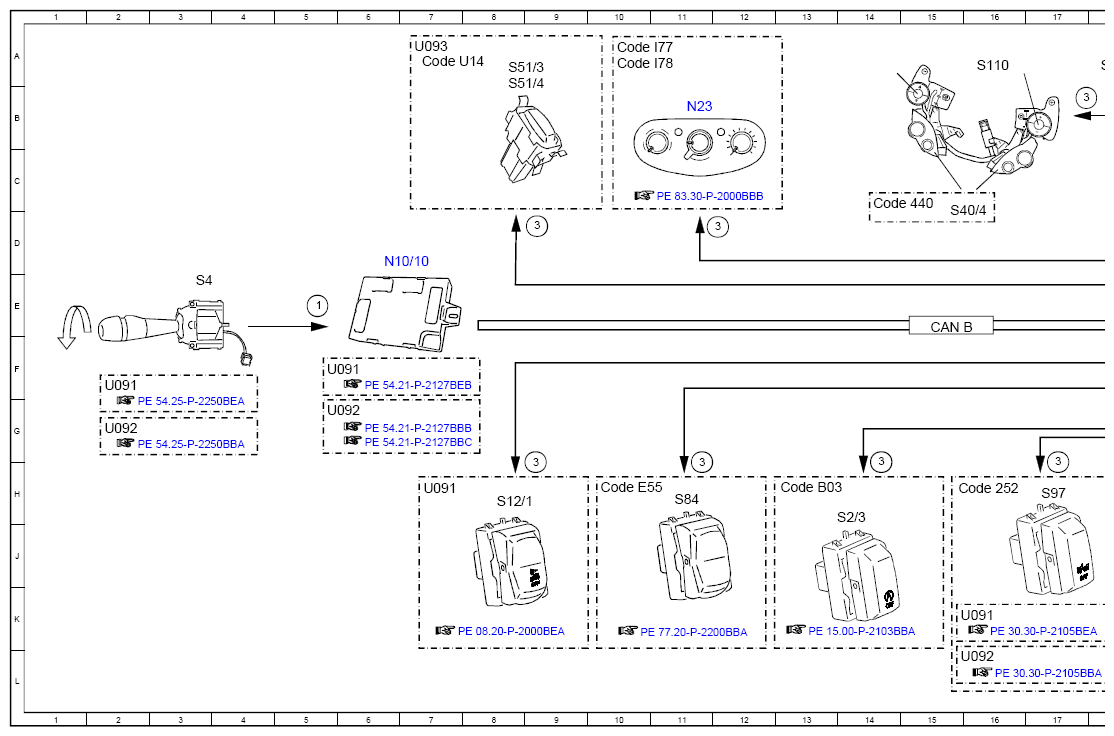

| N10/10 | Center SAM control unit | 6D |
| N23 | Climate control control and operating unit | 11B |
| S1/1 | Electric headlamp range adjustment selector wheel | 22H |
| S110 | Left multifunction steering wheel button group | 16A |
| S111 | Right multifunction steering wheel button group | 18A |
| S12/1 | Sound generator button | 8H |
| S15/1 | Trunk lid/liftgate release switch | 31H |
| S2/3 | Start/stop button | 14H |
| S20/1 | Power window switch group, driver side | 38E |
| S21/1 | Power window switch, driver side | 33B |
| S21/2 | Passenger-side power window switch | 34H |
| S4 | Combination switch | 3E |
| S40/4 | Cruise control/variable speed limiter switch group | 15D |

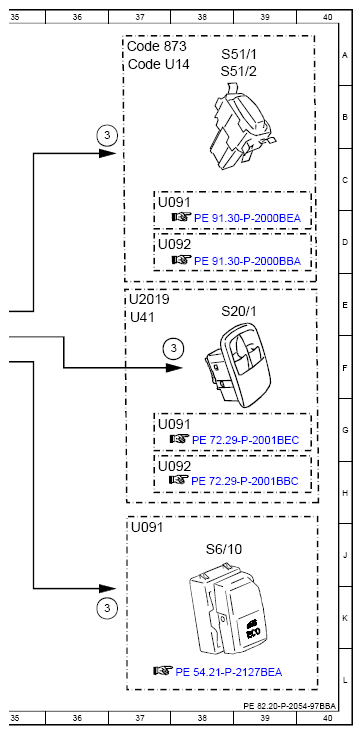

| S51/1 | Left front seat heater switch | 38A |
| S51/2 | Right front seat heater switch | 38A |
| S51/3 | Left rear seat heater switch | 8A |
| S51/4 | Right rear seat heater switch | 8B |
| S6/10 | Economy mode switch | 25H |
| S6/10 | Economy mode switch | 38J |
| S84 | Power soft top switch | 11H |
| S95 | Parking system switch | 28H |
| S96 | Lane Keeping Assist button | 20H |
| S97 | Distance warning function button | 17H |
| U091 | Valid for model 453.091/391/491 | 37J |
| U091 | Valid for model 453.091/391/491 | 7H |
| U091 | Valid for model 453.091/391/491 | 15K |
| U091 | Valid for model 453.091/391/491 | 18K |
| U091 | Valid for model 453.091/391/491 | 21K |
| U091 | Valid for model 453.091/391/491 | 27K |
| U091 | Valid for model 453.091/391/491 | 30K |
| U091 | Valid for model 453.091/391/491 | 32K |
| U091 | Valid for model 453.091/391/491 | 37G |
| U091 | Valid for model 453.091/391/491 | 27C |
| U091 | Valid for model 453.091/391/491 | 18C |
| U091 | Valid for model 453.091/391/491 | 21F |
| U091 | Valid for model 453.091/391/491 | 5F |
| U091 | Valid for model 453.091/391/491 | 2F |
| U091 | Valid for model 453.091/391/491 | 37C |
| U092 | Except model 453.091/391/491 | 18L |
| U092 | Except model 453.091/391/491 | 21L |
| U092 | Except model 453.091/391/491 | 30L |
| U092 | Except model 453.091/391/491 | 37H |
| U092 | Except model 453.091/391/491 | 27D |
| U092 | Except model 453.091/391/491 | 18D |
| U092 | Except model 453.091/391/491 | 21E |
| U092 | Except model 453.091/391/491 | 5G |
| U092 | Except model 453.091/391/491 | 2G |
| U092 | Except model 453.091/391/491 | 37D |
| U092 | Except model 453.091/391/491 | 27L |
| U092 | Except model 453.091/391/491 | 32L |
| U092 | Except model 453.091/391/491 | 15L |
| U093 | Only valid for 453.091 | 7A |
| U2019 | Valid up to model year 2017 | 37E |
| U2020 | Valid as of model year 2018 | 32A |
| U376 | Valid without code (B03) ECO start/stop function | 24H |
| U41 | Valid for special equipment (Highline: Passion, Prime, Proxy, Brabus Edition #1) | 37E |
| U75 | Valid for gasoline engines | 24H |
