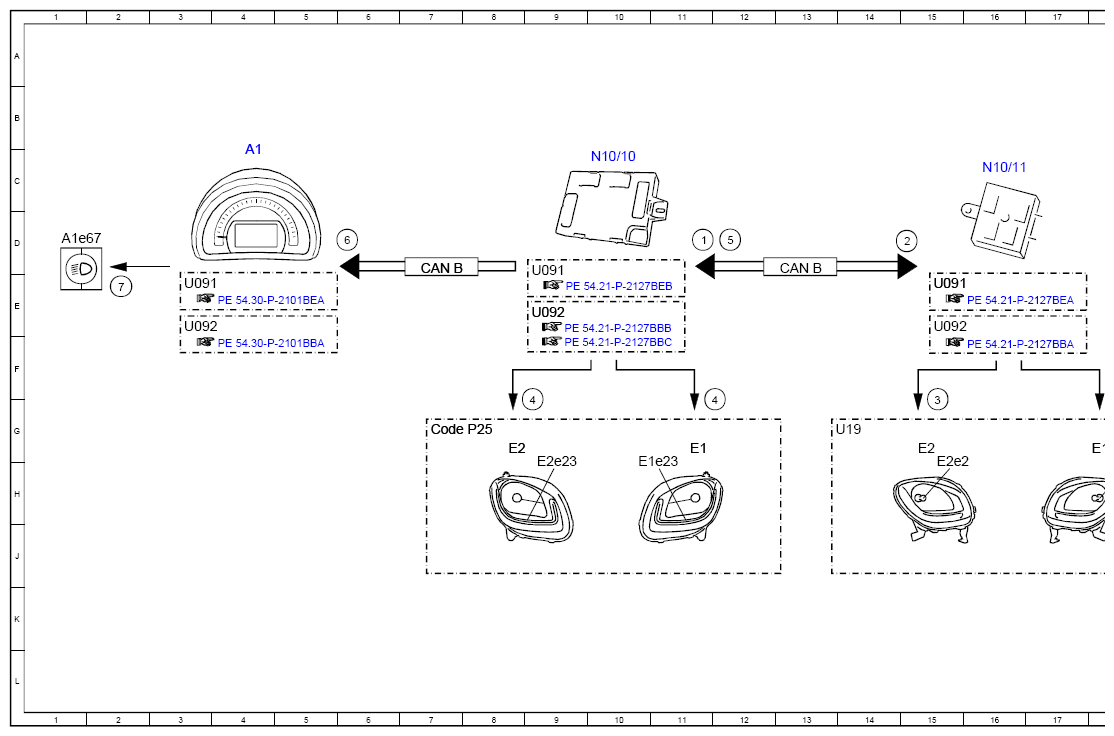

Electrical Function Schematic, Headlamp Switch-Off Delay (SWA) - PE82.10-P-2062-97BBA
MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Combination switch, status | 18D |
| 1 | Combination switch, status | 11D |
| 2 | Headlamp switch-off delay, request | 15D |
| 3 | Low beams, actuation | 18G |
| 3 | Low beams, actuation | 15G |
| 4 | Ambient light, actuation | 9F |
| 4 | Ambient light, actuation | 12F |
| 5 | Low beams, status | 12D |
| 6 | Low beams indicator lamp, request | 6D |
| 7 | Low beams indicator lamp, actuation | 2E |
| A1 | Instrument cluster | 4C |
| A1e67 | Low beam indicator lamp | 1D |
| CAN B | Interior CAN | 13D |
| CAN B | Interior CAN | 7D |
| Code P25 | LED & sensor package | 7G |
| E1 | Left front lamp unit | 18G |
| E1 | Left front lamp unit | 11G |
| E1e2 | Left low beam | 18H |
| E1e23 | Left front ambient light | 10H |
| E2 | Right front lamp unit | 15G |
| E2 | Right front lamp unit | 8G |
| E2e2 | Right low beam | 15H |
| E2e23 | Right front ambient light | 9H |
| N10/10 | Center SAM control unit | 10C |
| N10/11 | Driver SAM control unit | 16C |
| S4 | Combination switch | 21C |
| U091 | Valid for model 453.091/391/491 | 3E |
| U091 | Valid for model 453.091/391/491 | 9E |
| U091 | Valid for model 453.091/391/491 | 15E |
| U091 | Valid for model 453.091/391/491 | 19E |
| U092 | Except model 453.091/391/491 | 3E |
| U092 | Except model 453.091/391/491 | 9E |
| U092 | Except model 453.091/391/491 | 15E |
| U092 | Except model 453.091/391/491 | 19E |
| U19 | Valid for standard equipment | 13G |
