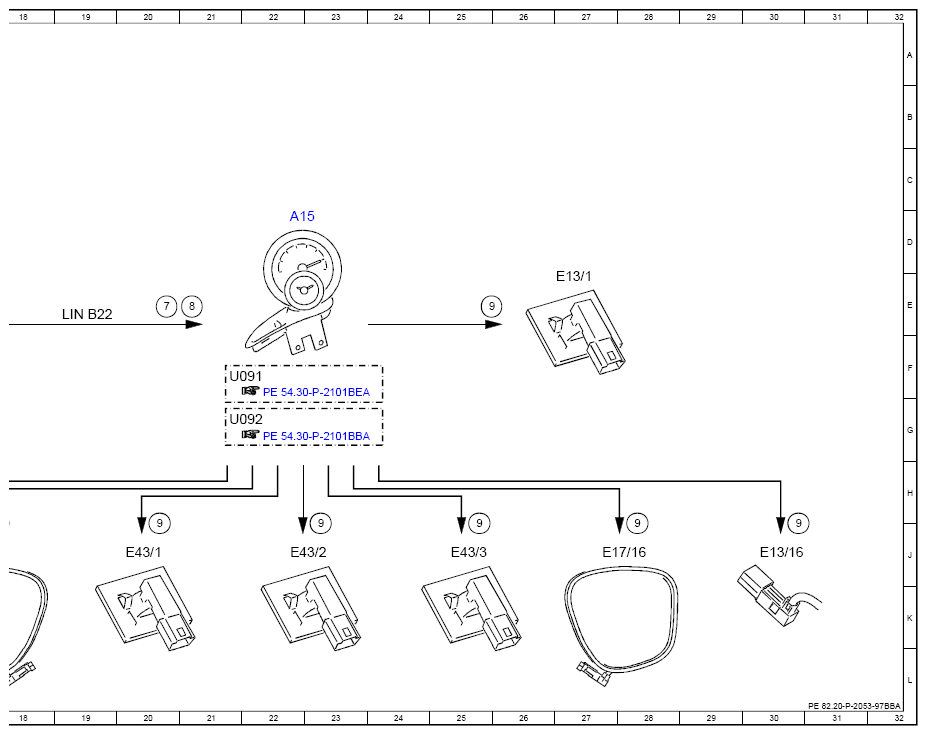

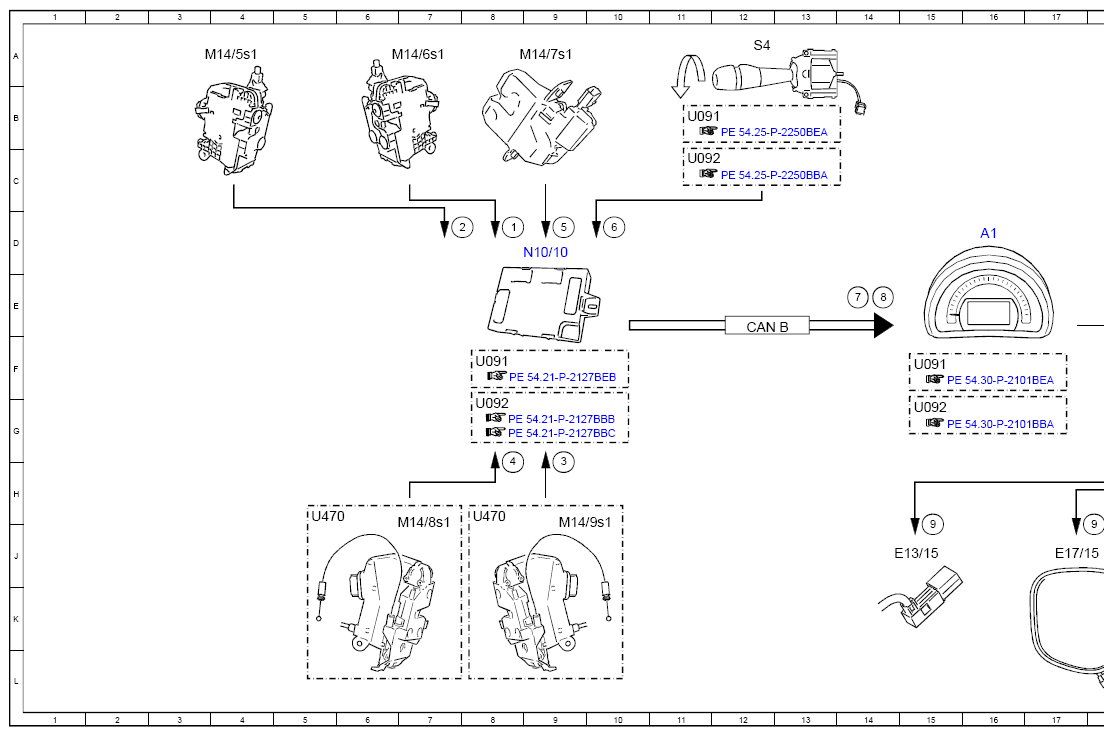

Electrical Function Schematic Ambiance Illumination - PE82.20-P-2053-97BBA
MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Driver door central locking microswitch, status | 8D |
| 2 | Front passenger door central locking microswitch, status | 8D |
| 3 | Right rear central locking microswitch, status | 9H |
| 4 | Left rear central locking microswitch, status | 8G |
| 5 | Liftgate central locking system microswitch, status | 9D |
| 6 | Combination switch, status | 10D |
| 7 | Ambience illumination, request | 14E |
| 7 | Ambience illumination, request | 20E |
| 8 | Ambiance illumination brightness, status | 14E |
| 8 | Ambiance illumination brightness, status | 21E |
| 9 | Ambience illumination, actuation | 15H |
| 9 | Ambience illumination, actuation | 18J |
| 9 | Ambience illumination, actuation | 26E |
| 9 | Ambience illumination, actuation | 20H |
| 9 | Ambience illumination, actuation | 23H |
| 9 | Ambience illumination, actuation | 25H |
| 9 | Ambience illumination, actuation | 28H |
| 9 | Ambience illumination, actuation | 30H |
| A1 | Instrument cluster | 16D |
| A15 | Additional instruments | 22D |
| CAN B | Interior CAN | 12E |
| E13/1 | Glove box lamp | 27E |
| E13/15 | Left front door ambiance illumination | 15J |
| E13/16 | Right front door ambiance illumination | 30J |
| El 7/15 | Right front footwell lamp | 17J |
| El 7/16 | Left front footwell lamp | 27J |
| E43/1 | Left cockpit ambiance illumination | 20J |
| E43/2 | Center cockpit ambiance illumination | 22J |
| E43/3 | Right cockpit ambiance illumination | 25J |
| LIN B22 | Additional instruments LIN | 19E |
| M14/5s1 | Front passenger door central locking system microswitch | 4A |
| M14/6s1 | Driver door central locking system microswitch | 7A |
| M14/7s1 | Liftgate central locking system microswitch | 9A |
| M14/8s1 | Left rear central locking microswitch | 7J |
| M14/9s1 | Right rear central locking microswitch | 9J |
| N10/10 | Center SAM control unit | 9D |
| S4 | Combination switch | 12A |
| U091 | Valid for model 453.091/391/491 | 8F |
| U091 | Valid for model 453.091/391/491 | 15F |
| U091 | Valid for model 453.091/391/491 | 21F |
| U091 | Valid for model 453.091/391/491 | 11B |
| U092 | Except model 453.091/391/491 | 8G |
| U092 | Except model 453.091/391/491 | 15G |
| U092 | Except model 453.091/391/491 | 21G |
| U092 | Except model 453.091/391/491 | 11C |
| U470 | Valid for model 453.0 | 5H |
| U470 | Valid for model 453.0 | 8H |
