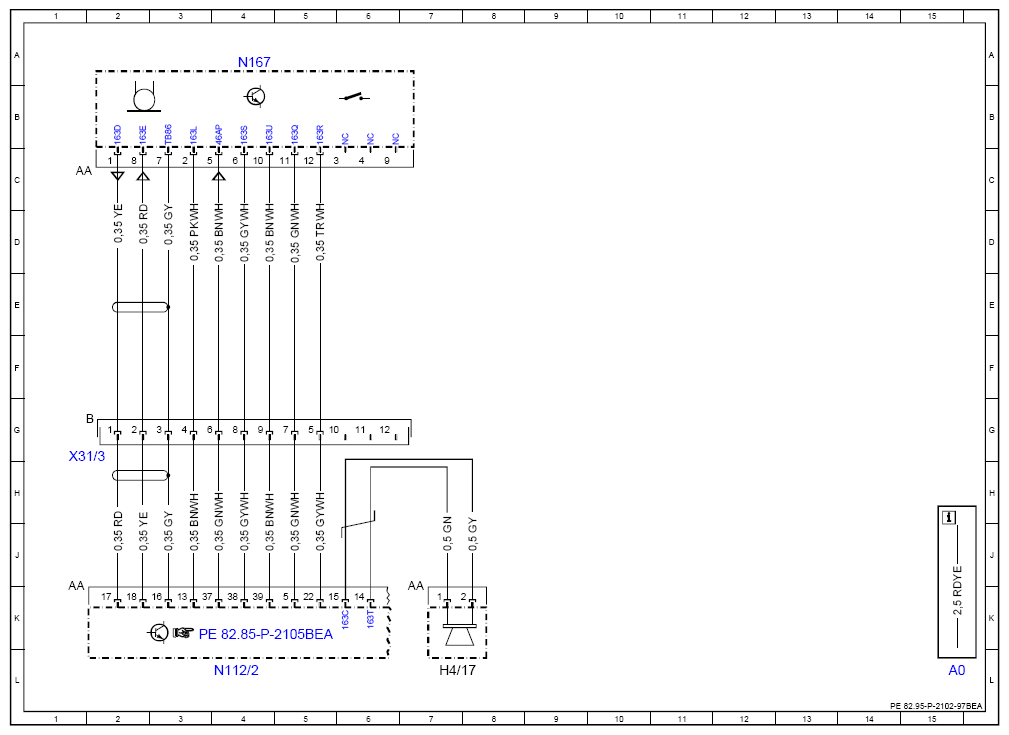

Ecall Control Unit Wiring Diagram, Russia (Glonass) - PE82.95-P-2102-97BEA
MODEL 453.091/391/491 up to model year 2020
| Code: |
Designation: |
Position: |
| A0 |
Use of wiring diagrams |
15L |
| H4/17 |
eCall Russia (GLONASS) speaker |
7L |
| N112/2 |
Telematics services communication module |
4L |
| N167 |
E-Call Russia (GLONASS) control unit |
4A |
| X31/3 |
Dome lamp electrical connector |
2H |
