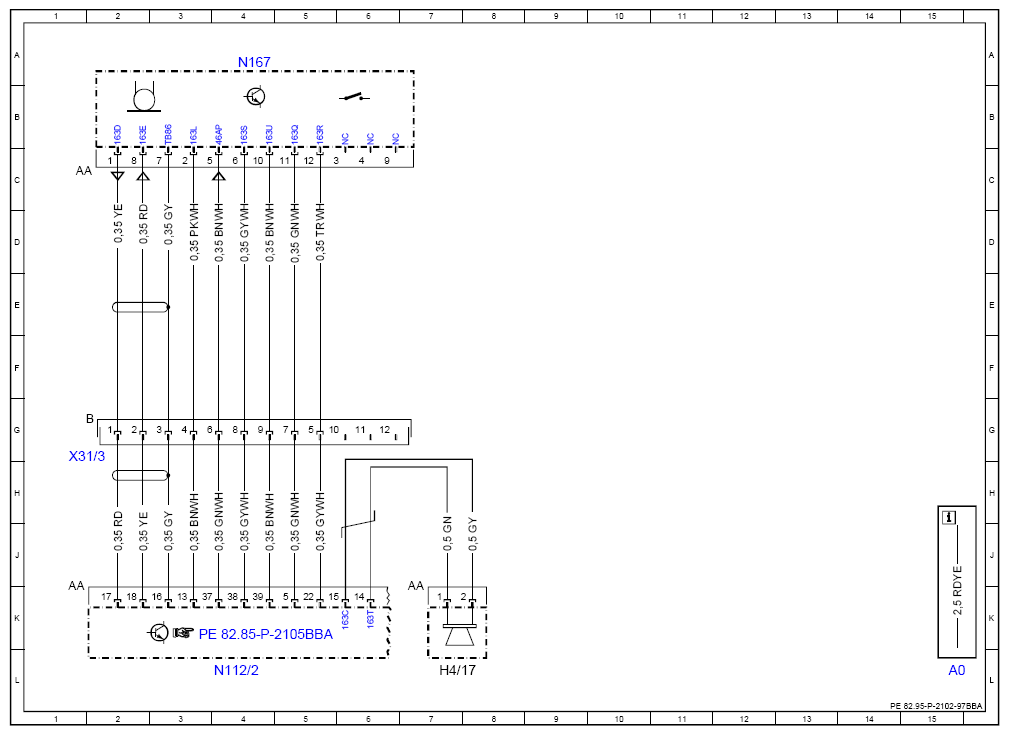

Ecall Control Unit Wiring Diagram, Russia (Glonass) - PE82.95-P-2102-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| H4/17 | eCall Russia (GLONASS) speaker | 7L |
| N112/2 | Telematics services communication module | 4L |
| N167 | E-Call Russia (GLONASS) control unit | 4A |
| X31/3 | Dome lamp electrical connector | 2H |
