Replace GPS Antenna - AR82.85-P-0008SRA

MODEL 453

with CODE 535 (smart Media system)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove communication unit.		AR82.85-P-2000SR

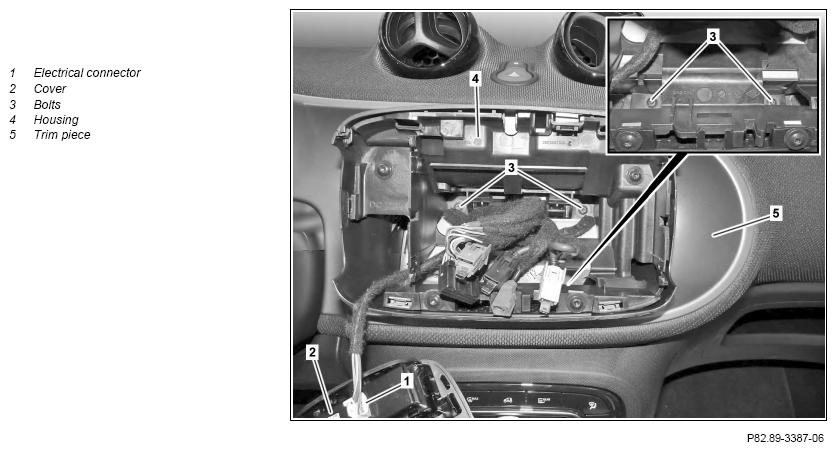

2	Disconnect electrical connector (1) and remove cover (2).
3	Unscrew bolts (3).
4	Remove housing (4) of the communication unit.	: Ensure electrical lines are routed correctly.
5	Unclip trim element (5) at instrument panel and remove.	Mounting wedge	Figure

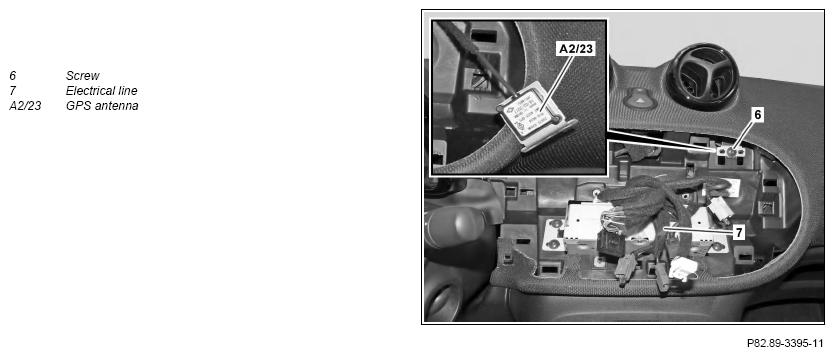

6	Remove screw (6) of GPS antenna (A2/23).
7	Expose electric line (7).
8	Remove GPS antenna (A2/23).
9	Install in the reverse order

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
