Retrofit Center High-Mounted Stop Lamp - AZ82.10-P-0003SR
MODEL 453.3/4

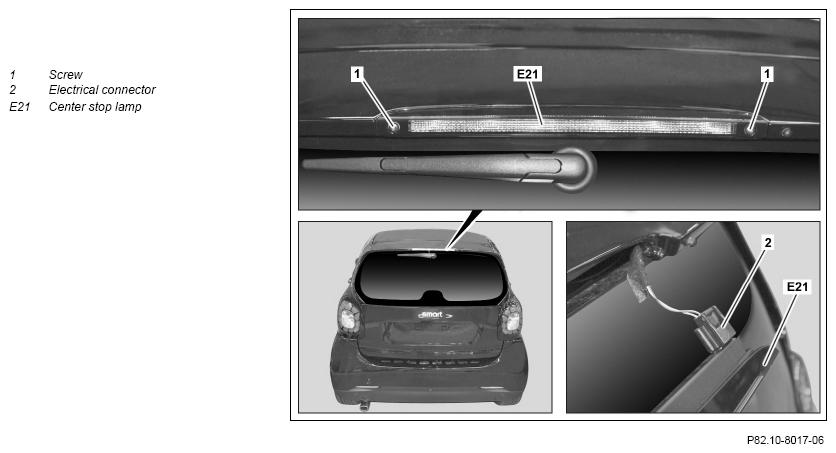

Shown on Model 453.3
| Remove | |||
| 1 | Remove bolts (1) | ||
| 2 | Remove center brake lamp (E21) and disconnect electrical connector (2) | ||
| Install | |||
| 3 | Connect electrical connector (2) | ||
| 4 | Apply new center brake lamp (E21) and tighten screws/bolts (1) | ||
| Update Vehicle Documentation (VeDoc) | |||
| 5 | Attach note "Center brake lamp retrofitted according to AZ82.10-P-0003SR" under field organization texts to design group 82 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 | Center brake lamp parts kit | 1 |
