Remove/Install Oil Dipstick Guide Tube - AR18.40-P-3510SR
ENGINE 281 in MODEL 453
Shown on engine 281.920
| Remove/install | |||
| 1 | Lower rear drive module | AR01.00-P-3050SR | |

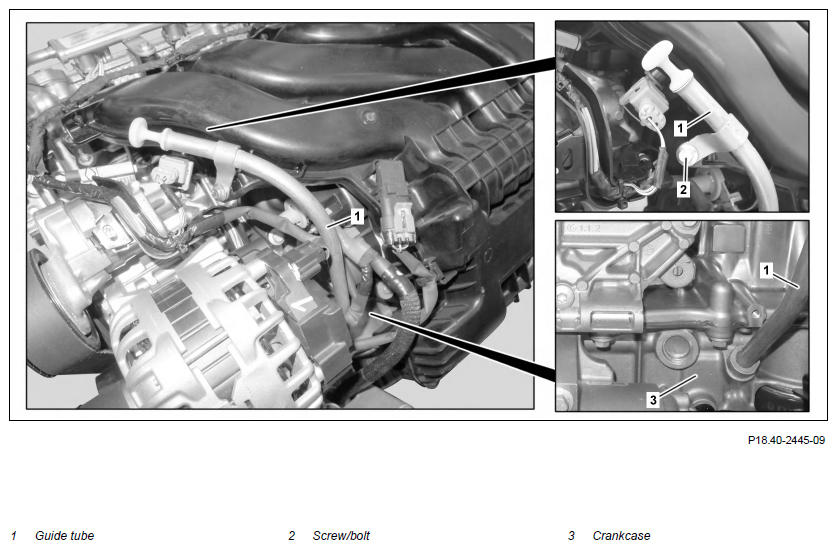

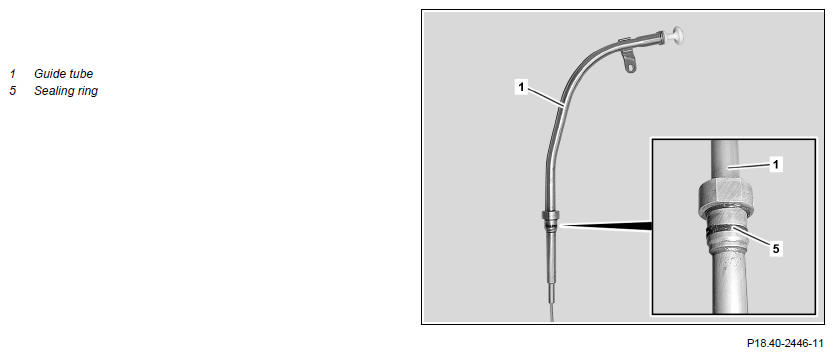

| 2 | Remove screw/bolt (2) | *BA01.45-P-1004-01J | |
| 3 | Turn guide tube (1) somewhat counterclockwise and remove from the crankcase (3) | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform an engine test run and check engine for leaktightness around guide tube (1) |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
OIL PAN
| Number | Designation | ENGINE 281 | |
|---|---|---|---|
| BA01.45-P-1004-01J | Bolt, oil dipstick guide tube to charge air distributor | Nm | 10 |
