Remove/Install Charge Air Pipe - AR09.41-P-1311SR
ENGINE 281.910 in MODEL 453
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Remove maintenance flap | ||
| 2 | Turn cap on engine coolant expansion reservoir a half turn counterclockwise, relieve overpressure and then unscrew the cap | ||
| 3 | Remove throttle valve actuator (M16/6) | AR07.61-P-1401SR | |

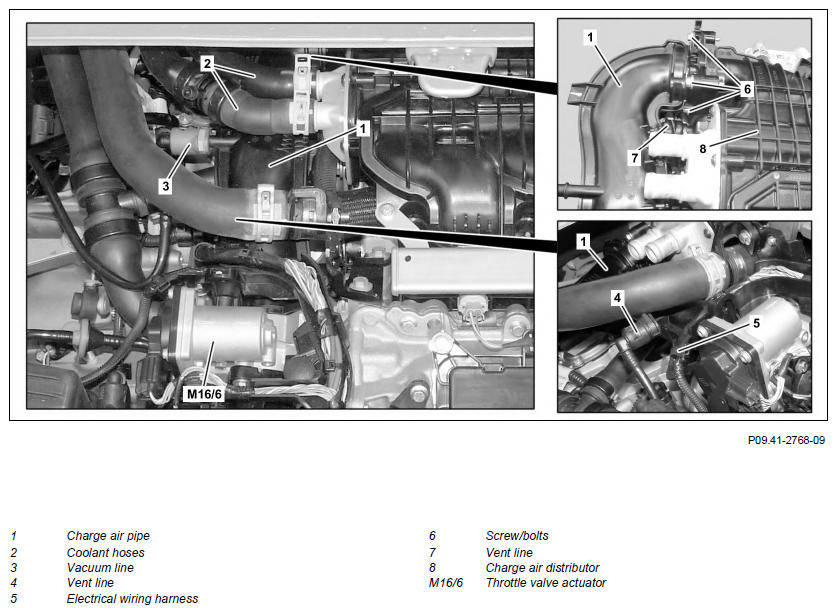

| 4 | Remove coolant hoses (2) | Figure | |
| 5 | Unlock and detach vacuum line (3) on charge air pipe (1) | ||
| 6 | Unlock and detach bleed line (4) on charge air pipe (1) | ||
| 7 | Unclip electrical wiring harness (5) at charge air pipe (1) | ||
| 8 | Remove screw/bolts (6) | *BA09.41-P-1001-01W | |
| 9 | Detach charge air pipe (1) from charge air distributor (8) | ||
| 10 | Unlock and detach bleed line (7) on charge air pipe (1) | ||
| 11 | Remove charge air pipe (1) | ||
| 12 | Install in the reverse order | ||
| 13 | Pour in coolant and bleed cooling system | AR20.00-P-1142SR |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | ENGINE 281.910 | |
|---|---|---|---|
| BA09.41-P-1001-01W | Bolt, charge air pipe to charge air distributor | Nm | 8 |
