Remove/install brake carrier plate - AR42.10-P-0164MCU
MODEL 451.3/4
| Remove/install | |||
| 1 | Remove left or right wheel brake cylinder | AR42.10-P-0167MCU | |

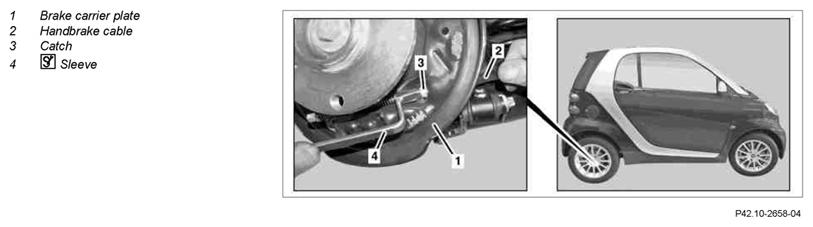

| 2 | Compress the locking device (3) on the hand brake cable (2) with sleeve (4) and guide the hand brake cable (2) out of the brake anchor plate (1) | Fig 2 | |
| 3 | Remove wheel bearing | AR35.20-P-0302MCU | |
| 4 | Remove brake carrier plate (1) | ||
| 5 | Install in the reverse order |
