Install Brabus hand brake lever - AN42.20-P-0003MCU
MODEL 451.3/4
| Removing | |||

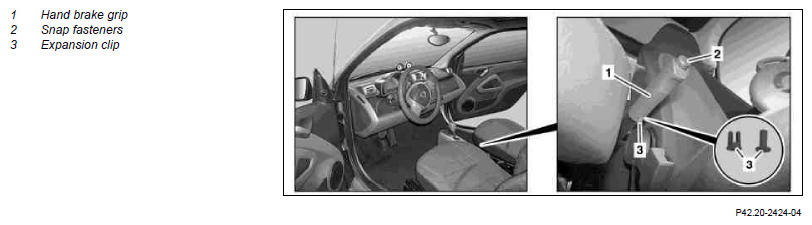

| 1 | Remove expansion clip (3) and pull hand brake grip (1) forward | ||
| 2 | Unscrew push-button (2) then remove | ||
| Install | |||

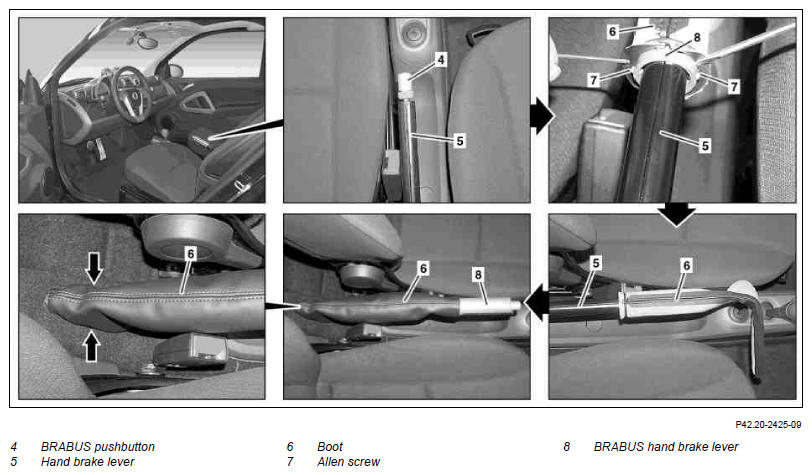

| 3 | Screw on BRABUS push-button (4) | ||
| 4 | Slide BRABUS hand brake grip (8) all the way on to the hand brake lever (5) | ||
| 5 | Uniformly tighten the Allen head screws (7) on the BRABUS hand brake grip (8) | ||
| 6 | Slide boot (6) to rear and use assembly wedge to position it under the floor covering (arrows) | Fig 3 | |
| 7 | Add special equipment to the vehicle data card and to the online vehicle data card |
