Install Brabus hand brake lever - AN42.20-P-0003MCC

MODEL 451.3/4 (except 451.391/491)

Shown on model 451.3 up to vehicle identification number (VIN) WME4513312K143823

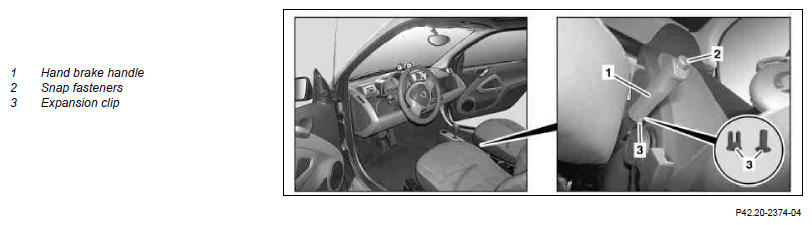

Fig 1: Identifying Brabus Hand Brake Lever Related Components - Shown On Model 451.3 Up To VIN WME4513312K143823

Courtesy of MERCEDES-BENZ USA

Shown on model 451.3 as of VIN WME4513312K143824

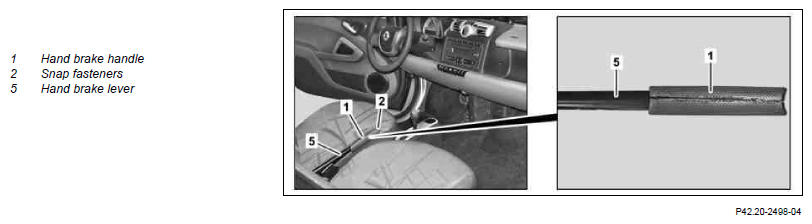

Fig 2: Identifying Brabus Hand Brake Lever Related Components - Shown On Model 451.3 As Of VIN WME4513312K143824

Courtesy of MERCEDES-BENZ USA

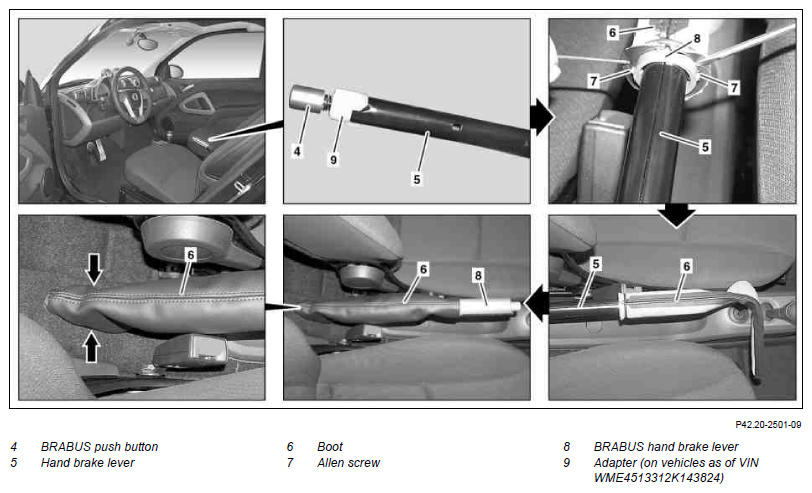

Fig 3: Identifying Brabus Hand Brake Lever Related Components

Courtesy of MERCEDES-BENZ USA

	Removing
1	Adjust seats rearwards and pull on hand brake lever (5)
2	Protect seats and center console against damage and dirt using a suitable cover	On vehicles as of VIN WME4513312K143824
3	Unscrew and remove push button (2)
4.1	Remove expansion clip (3) and pull off hand brake handle (1) forwards	On vehicles up to VIN WME4513312K143823
4.2	Saw up hand brake handle (1) in the upper area in the longitudinal direction, using a screwdriver lever up the hand brake lever (1) and remove	On vehicles as of VIN WME4513312K143824 Saw up the hand brake lever (1) carefully so that the hand brake lever (5), the driver seat and front passenger seat as well as other vehicle parts are not damaged. Window glazing device, FSC 1.6
	Install
5	Slide adapter (9) onto the threaded rod of the hand brake lever (5)	On vehicles as of VIN WME4513312K143824
6	Screw on BRABUS push button (4)
7	Slide on BRABUS hand brake handle (8) up to the end stop on the hand brake lever (5)
8	Tighten self-locking Inbus screws (7) on the BRABUS hand brake handle (8) evenly
9	Slide boot (6) rearwards and using an assembly wedge position under the floor covering (arrow)		Fig 4

Fig 4: Identifying Mounting Wedge (110 589 03 59 00)
