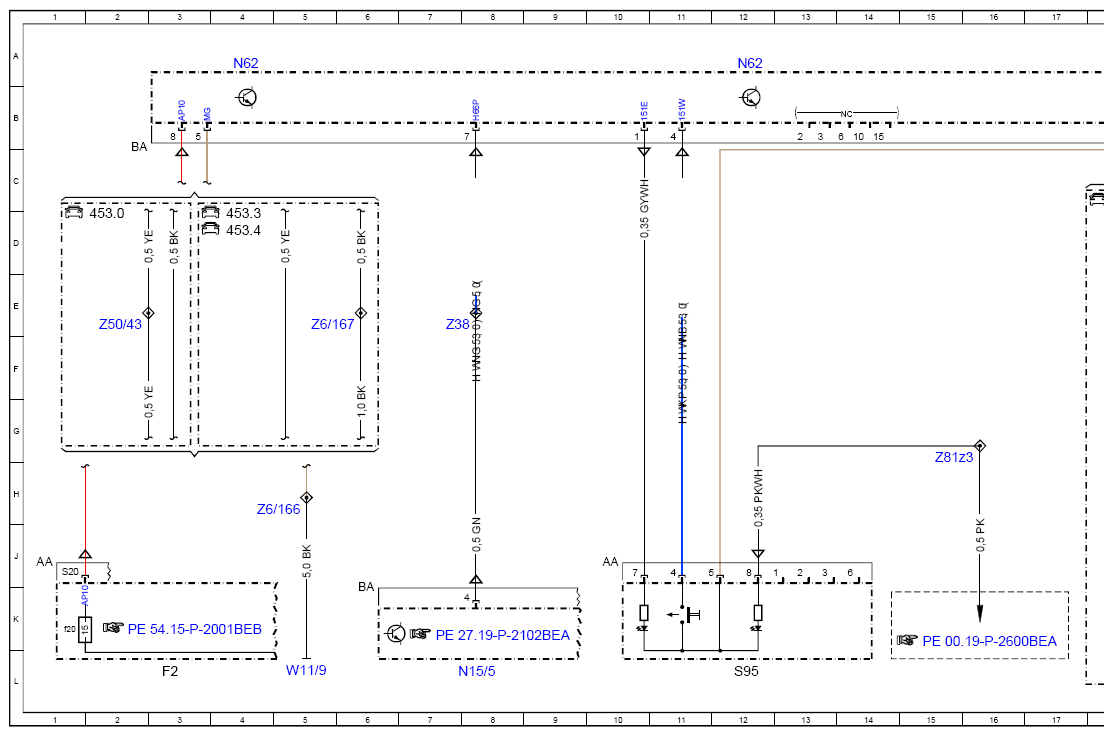

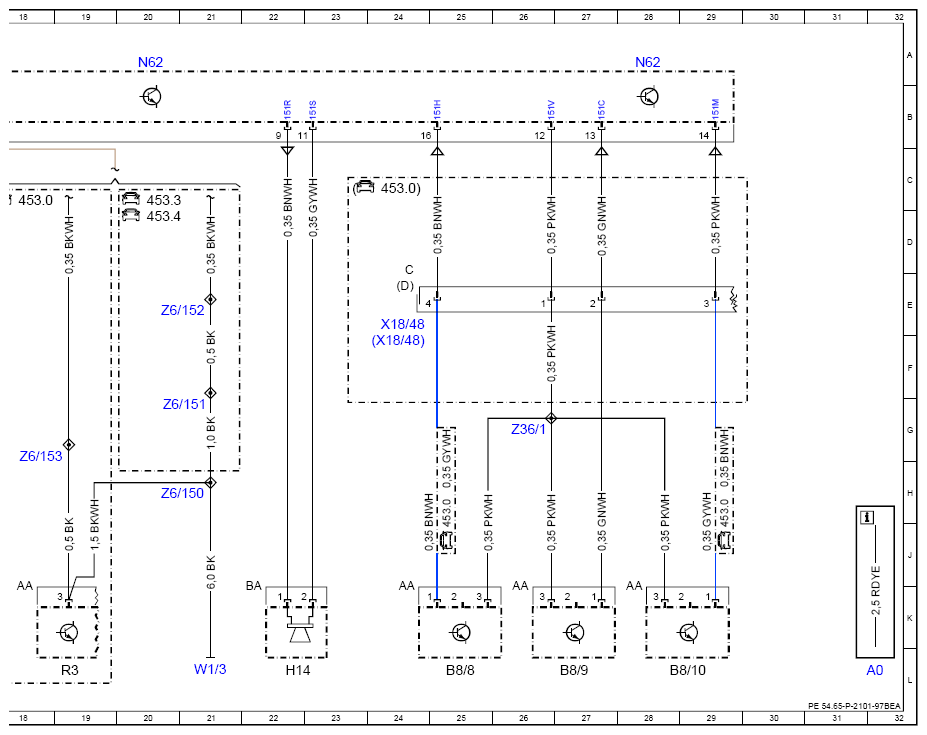

Wiring Diagram For Parktronic System (PTS) Control Unit - PE54.65-P-2101-97BEA
MODEL 453.091/391/491 up to model year 2020 with CODE 220 (Rear parking assist)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| B8/10 | Center rear parking system distance sensor | 28L |
| B8/8 | Right rear parking system distance sensor | 25L |
| B8/9 | Left rear parking system distance sensor | 27L |
| F2 | Vehicle interior fuse and relay module | 3L |
| F2f20 | Fuse 20 | 1K |
| H14 | Parking system warning buzzer | 22L |
| N15/5 | Electronic selector lever module control unit | 8L |
| N62 | Parking system control unit | 4A |
| N62 | Parking system control unit | 12A |
| N62 | Parking system control unit | 20A |
| N62 | Parking system control unit | 28A |
| R3 | Front cigarette lighter with ashtray illumination | 19L |
| S95 | Parking system switch | 12L |
| W1/3 | Left cockpit ground point | 21L |
| W11/9 | Left rear ground point | 5L |
| X18/48 | Vehicle interior/rear end electrical connector | 24E |
| X18/48 | Vehicle interior/rear end electrical connector | 24F |
| Z36/1 | Rear parking system sensors ground line connector sleeve | 26G |
| Z38 | Backup lamp connector sleeve | 7E |
| Z50/43 | Circuit 15 (fused) connector sleeve | 2E |
| Z6/150 | Ground connection connector sleeve | 21H |
| Z6/151 | Ground connection connector sleeve | 21G |
| Z6/152 | Ground connection connector sleeve | 21E |
| Z6/153 | Ground connection connector sleeve | 18G |
| Z6/166 | Circuit 31 connector sleeve | 5H |
| Z6/167 | Circuit 31 connector sleeve | 5E |
| Z81z3 | Circuit 58d connector sleeve | 15G |
