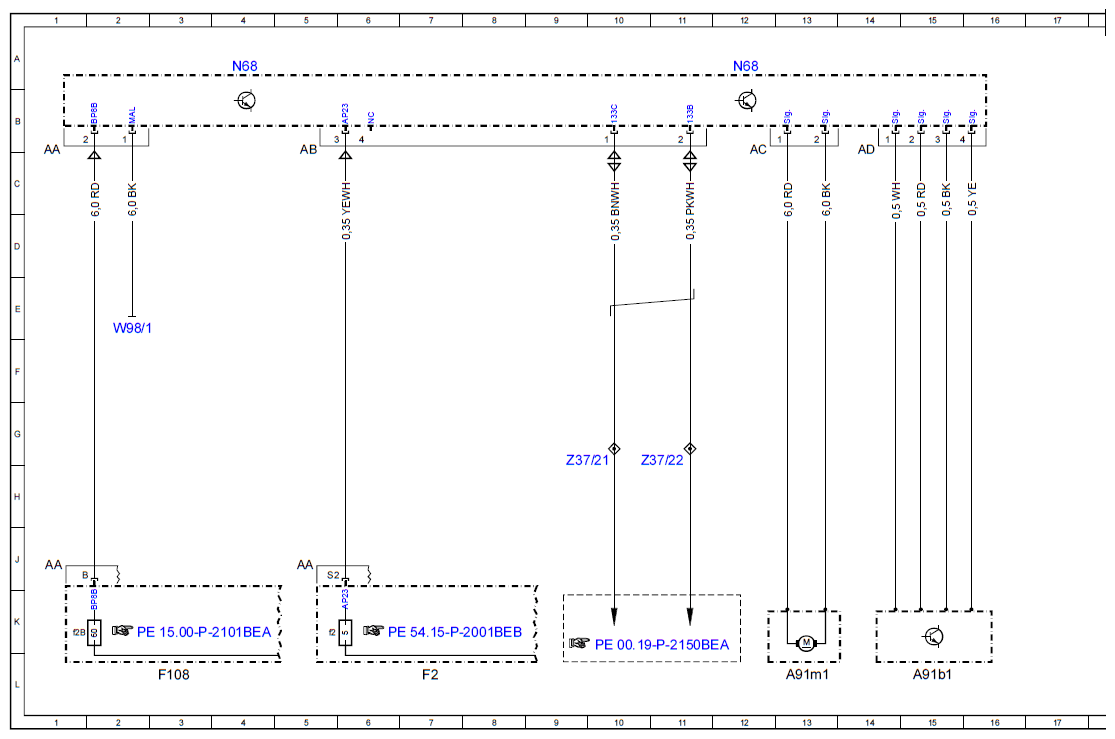

Wiring Diagram Of Electric Steering - PE46.35-P-2000-97BEA
MODEL 453.091/391/491 up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 23L |
| A91b1 | Electric power steering torque sensor | 15L |
| A91m1 | Electric power steering actuator motor | 13L |
| F108 | Battery clamp fuse | 3L |
| F108f2B | Electrical fuse 2B | 1K |
| F2 | Vehicle interior fuse and relay module | 7L |
| F2f2 | Fuse 2 | 5K |
| N68 | Electrical power steering control unit | 4A |
| N68 | Electrical power steering control unit | 12A |
| W98/1 | Shielding ground point | 2E |
| Z37/21 | CAN bus (low) connector sleeve | 9G |
| Z37/22 | CAN databus (high) connector sleeve | 11G |
