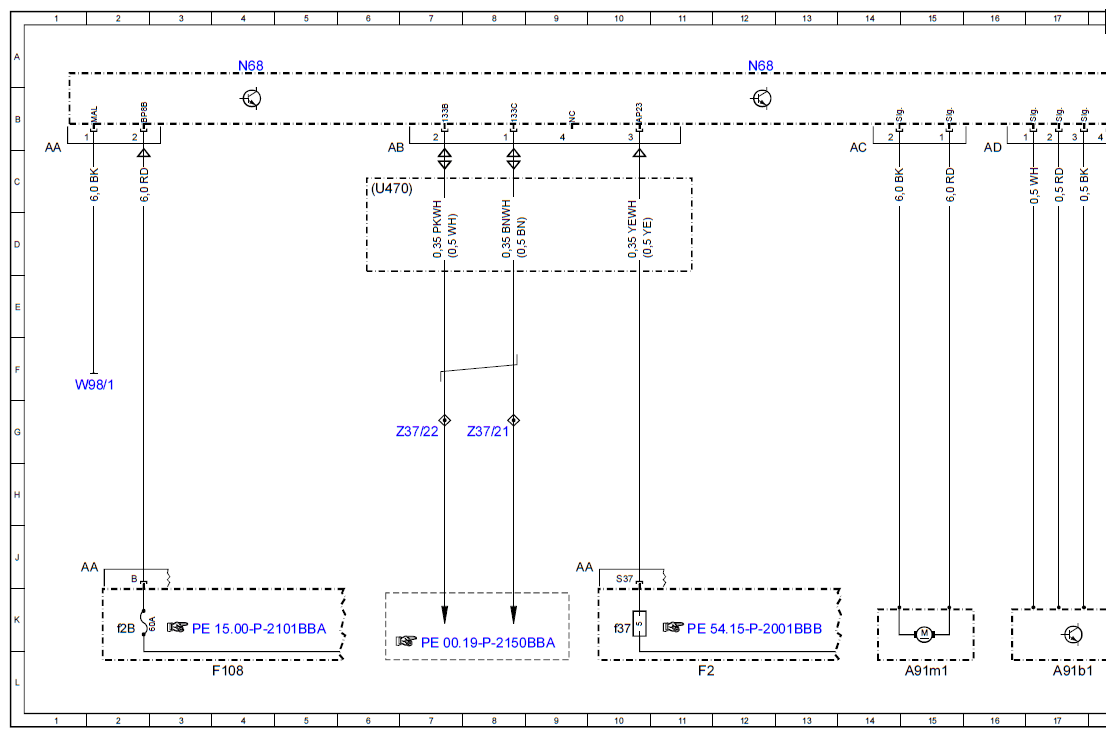

Wiring Diagram Of Electric Steering - PE46.35-P-2000-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 23L |
| A91b1 | Electric power steering torque sensor | 17L |
| A91m1 | Electric power steering actuator motor | 15L |
| F108 | Battery clamp fuse | 4L |
| F108f2B | Electrical fuse 2B | 2K |
| F2 | Vehicle interior fuse and relay module | 11L |
| F2f37 | Fuse 37 | 10K |
| N68 | Electrical power steering control unit | 12A |
| N68 | Electrical power steering control unit | 4A |
| U470 | Valid for model 453.0 | 6C |
| W98/1 | Shielding ground point | 1F |
| Z37/21 | CAN bus (low) connector sleeve | 8G |
| Z37/22 | CAN databus (high) connector sleeve | 7G |
