Remove/Install Active Lane Keeping Assist Switch - AR54.71-P-0002SR
MODEL 453
with CODE 238 (ACTIVE LANE KEEPING ASSIST)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

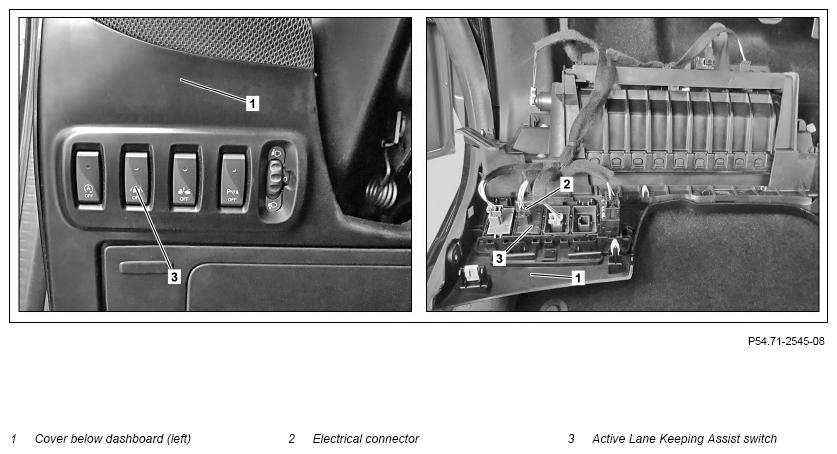

| 1 | Detach cover under instrument panel (left) (1) with electrical connectors connected and place in footwell | Do not put electrical connector under tension. Damage can occur to the electrical connectors otherwise. |
AR68.10-P-1500SR |
| 2 | Disconnect electrical connector (2) | ||
| 3 | Unclip Active Lane Keeping Assist switch (3) | ||
| 4 | Install in the reverse order |
