Remove/Install Charge Air Temperature Sensor Upstream Of Throttle Valve - AR09.41-P-0006SR

ENGINE 281.910 in MODEL 453

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A

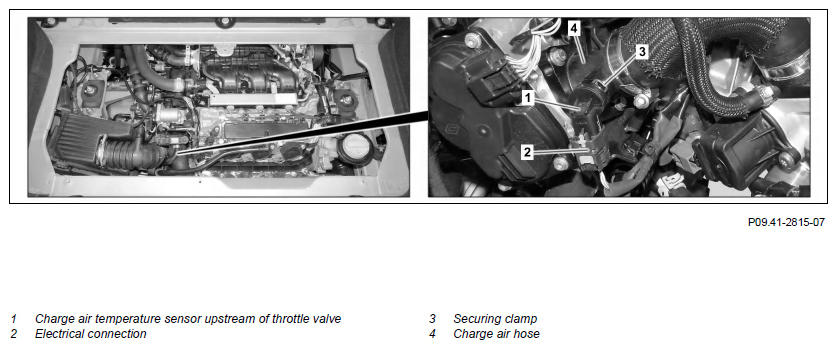

	Remove/install
1	Remove covering over engine
2	Release and disconnect electrical connection (2)
3	Remove safety clamp (3)
4	Pull charge air temperature sensor upstream of throttle valve (1) out of charge air hose (4)	Replace sealing ring on charge air temperature sensor upstream of throttle valve (1).
5	Install in the reverse order
6	Connect diagnostic unit, read out fault memory	When replacing the charge air temperature sensor upstream of throttle valve (1).
			AD00.00-P-2000-06SR
