Remove/Install Charge Air Cooler - AR09.41-P-6817SR

ENGINE 281.910 in MODEL 453

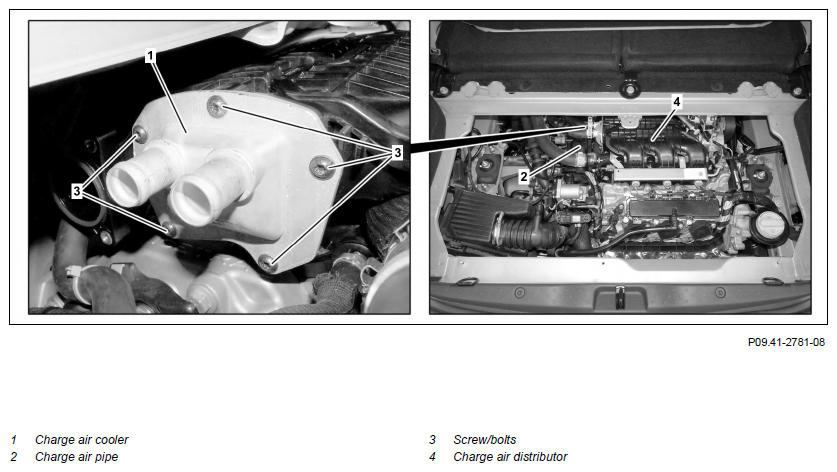

Fig 1: Charge Air Cooler Component Location - Engine 281.910 In Model 453

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Notes on coolant		AH20.00-N-2080-01A
	Remove/install
1	Remove charge air pipe (2)		AR09.41-P-1311SR
2	Remove screws/bolts (3)
3	Take charge air cooler (1) out of charge air distributor (4)	Collect escaping coolant in a suitable container. Ensure correct seating of guide rails for charge air cooler (1) in the charge air distributor (4).
4	Install in the reverse order
