Remove/install left rear brake line - AR42.10-P-0036MCU
MODEL 451.3/4
| Remove/install | |||
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||
| 2 | Check bolted connection of brake line (1) with brake hose (2) and wheel brake cylinder (3) for color codings | AR42.10-P-0013-05MCC | |
| 3 | Loosen bolted connections of the brake line (1) with the hydraulic unit (2) and the brake hose (3) and separate | *BA42.10-P-1002-04E | |
| *BA42.10-P-1003-04E | |||

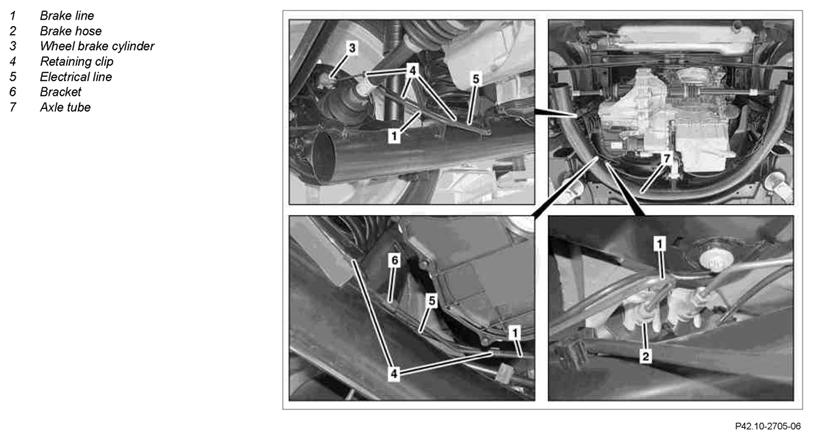

| Figure | |||
| 4 | Unclip retaining clips (4) of electrical line (5) on brake line (1) | ||
| 5 | Unclip brake line (1) from bracket (6) on the axle tube (7) | ||
| 6 | Remove brake line (1) | ||
| 7 | Replace brake line (1). | Only if the brake line (1) with the red color coding has been detached. | |
| 8 | Install in the reverse order | ||
| 9 | Bleed brake system | AR42.10-P-0010MCU |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 451.3/4 | |
|---|---|---|---|
| BA42.10-P-1002-04E | Brake pipe to brake hose | Nm | 16 |
| BA42.10-P-1003-04E | Brake line to rear wheel brake cylinder | Nm | 16 |
