Check lining thickness of brake pads and condition of brake disks - AP42.10-P-4251MCC

MODEL 451.3/4

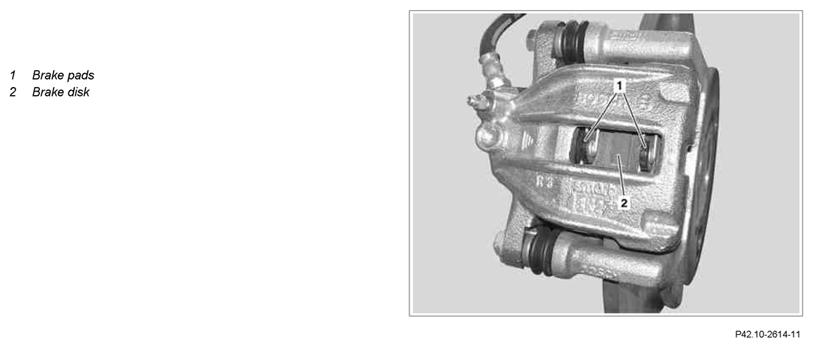

Fig 1: Identifying Brake Pads And Brake Disk

Courtesy of MERCEDES-BENZ USA

	Check
1	Check lining thickness of brake pads (1) on front axle
	Remove/check/install front axle brake pads		AR42.10-P-1600MCC
		Check brake pads (1) in the installed condition. Observe recommended wear limit so that wear limit is not dropped below up to the next maintenance service. If necessary: ↓ Install new brake pads (1), subject to separate repair order.
2	Inspect brake disk (2) for scores and cracks Remove/install front axle brake disk
		If necessary: ↓ Install new brake disk (2), subject to separate repair order.	AR42.10-P-0230MCC
		If necessary: ↓ Install new brake disk (2), subject to separate repair order.
