Remove/install battery sensor - AR54.10-P-0002MCC

MODEL 451.334/380/390/392/480/490/492

without CODE 494 (US version)

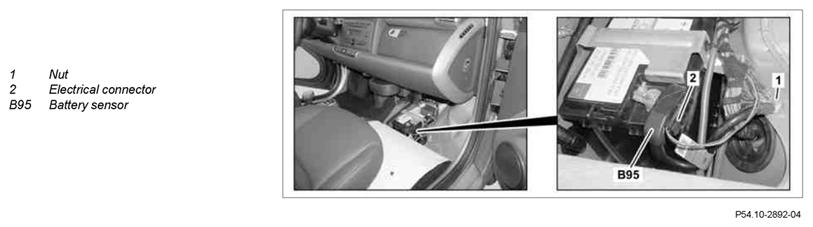

Fig 1: Identifying Battery Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Disconnect ground line of battery		AR54.10-P-0003MCC
2	Disconnect electrical connector (2) from battery sensor (B95)
3	Unscrew nut (1) and remove ground line with battery sensor (B95)	The battery sensor (B95) is integrated in the ground line and cannot be replaced separately
4	Install in the reverse order
