Check manual operating mechanism for combination/cruise control lever routing - AP86.20-P-8654C
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 156, 169, 172, 176, 204, 205, 207, 212, 217, 218, 221, 222, 242, 245, 246 (with driving aids ex factory)
| Check | |||

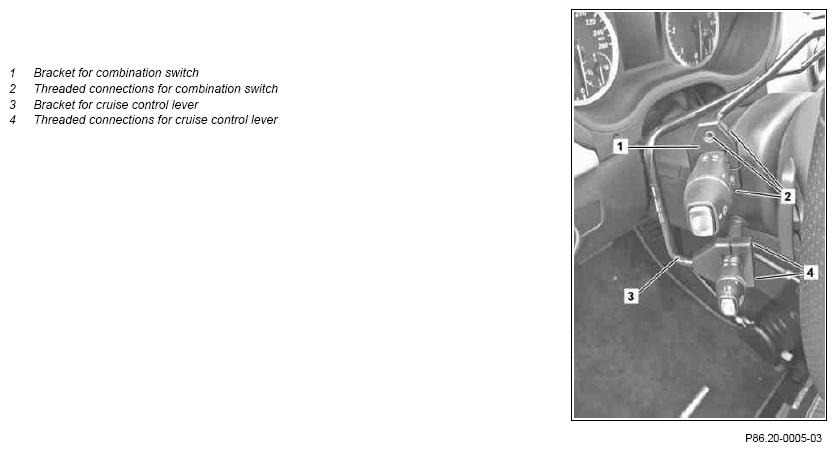

| 1 | Check that bracket at combination switch (1) is seated securely | ||
| 2 | Check that bracket at cruise control lever (3) is seated securely | ||
| 3 | Check that threaded connections (2, 4) at brackets are tight | Threaded connections (2, 4) not secured adequately: Retighten threaded connections (2, 4). |
