Remove/install smart radio - AR82.60-P-7004MCE
MODEL 451.3
with CODE P02 (car2go)
except CODE 516 (RADIO WITH USB INTERFACE)
except CODE 527 (High-Line radio)
except CODE C50 (smart radio ten)
except CODE C57 (smart radio nine)
With instrument panel up to production date 30.8.10
| Remove/install | |||

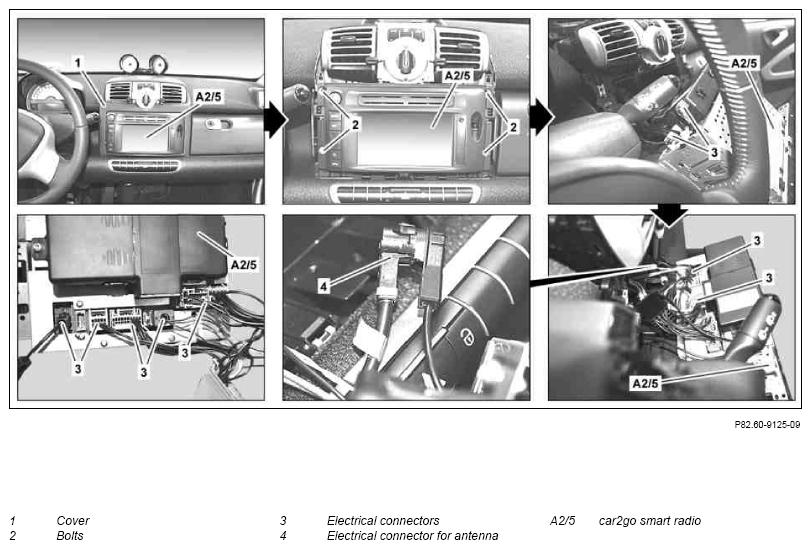

| 1 | Remove transponder key and fuel and parking card from the car2go smart radio (A2/5) | ||
| 2 | Remove cover on center console | AR68.20-P-2350MCC | |
| 3 | Remove screws/bolts (2) from car2go smart radio (A2/5) | ||
| 4 | Pull smart car2go radio (A2/5) far enough out of radio recess, until electrical connectors (3) and antenna electrical connector (4) are accessible | ||
| 5 | Disconnect electrical connectors (3) and antenna electrical connector (4) for smart car2go radio (A2/5) | ||
| 6 | Remove car2go smart radio (A2/5) | ||
| 7 | Remove Subscriber Identification Module (SIM) card from communication unit | When replacing car2go smart radio (A2/5). | AR82.85-P-2001MCG |
| 8 | Install in the reverse order | ||
| 9 | Perform function test of car2go smart radio (A2/5) |
