Remove/install media interface - AR82.60-P-1031MCC
MODEL 451.3/4 as of 31.8.10
with CODE (516) RADIO WITH USB INTERFACE
with CODE (527) High-Line radio
| Remove/install | |||
| 1 | Remove radio | AR82.60-P-7502MCC | |

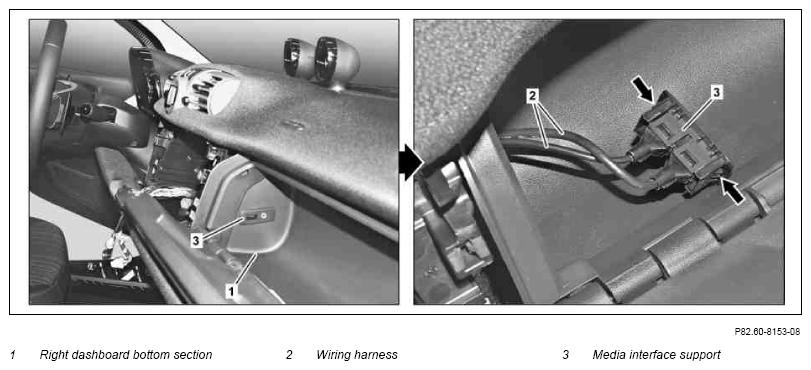

| 2 | Unclip media interface support (3) using a suitable screwdriver from the right lower section of the instrument panel (1) | ||
| 3 | Route wiring harness (2) towards glove box and out of the right lower section of the instrument panel (1) | ||
| 4 | Install in the reverse order | ||
| 5 | Perform function test of media interface |
