Remove/install window crank - AR72.10-P-1100MCC
MODEL 451.3/4 except CODE (V43) Power window
| Remove | |||
| 1 | Open front door | ||

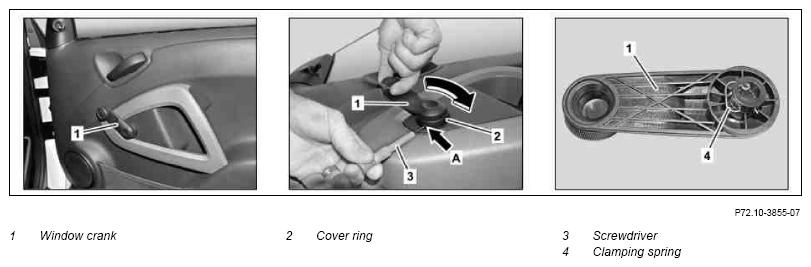

| 2 | Insert suitable screwdriver (3) into opening (arrow A) of cover ring (2) on window crank (1) | ||
| 3 | Turn window crank (1) clockwise until clamping spring (4) is unlocked | ||
| 4 | Remove window crank (1) | ||
| 5 | Remove cover ring (2) | ||
| Install | |||
| 6 | Insert clamping spring (4) into crank window guide (1) | ||
| 7 | Position window crank (1) as shown and press onto window lifter shaft |
