Check, adjust front fog lights - AP82.10-P-8260-04EW

MODEL 207, 212 with halogen headlamps

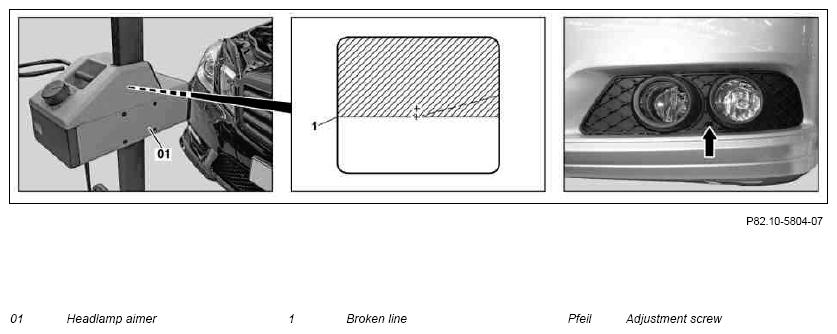

Fig 1: Locating Headlamp Aimer Adjustment Screw

Courtesy of MERCEDES-BENZ USA

The light-dark boundary of the light beam must be horizontal at the height of the separating line (1) in the headlamp aimer (01).

1. Check fog lamp setting.
2. Correct front fog lamps adjustment if necessary by turning the adjustment screw (arrow).
