Notes on D2B ring - AH82.70-P-0001-03I
MODEL 208.4 as of 7/1/98 with CODE 316 (MB D-net telephone (D2B)) with CODE 317 (D-net portable CTEL (D2B)) with CODE 347 (TELE AID emergency call system (D2B)) without CODE 351 (Auto Pilot System (APS))
- The components in the D2B ring (station components) in this case are: - Radio (A2)
- Telephone interface (A34/4) or TELE AID control unit (A35/8)
- Voice control system control unit (A35/11) (for vehicles with code 813)
- The information in the D2B ring only flows in one direction (arrows). The information enters in the white insert (white) in a fiber optic cable module M1 to M3 and exits again in the red insert (red) at the next ring component.
The D2B ring only is capable of functioning as a closed circuit.
- Before the D2B ring can be expanded it is first necessary to determine the current vehicle configuration

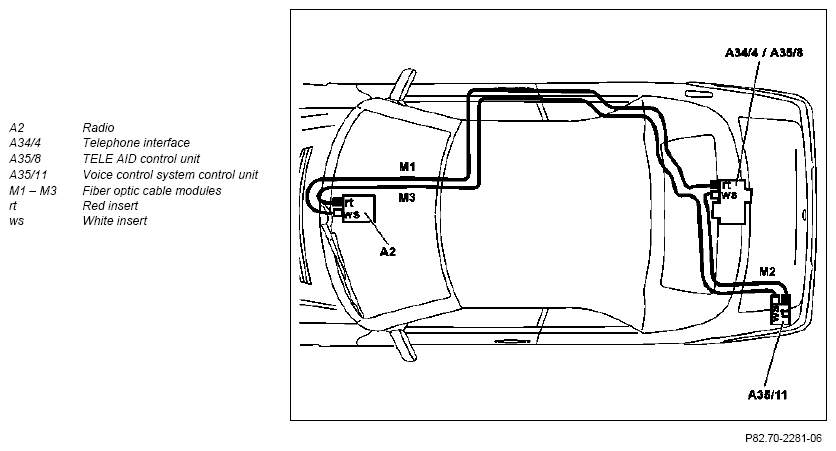

Actual configuration in the vehicle with fixed installation CTEL (code 316) or TELE AID (code 347) and voice control system (code 813)

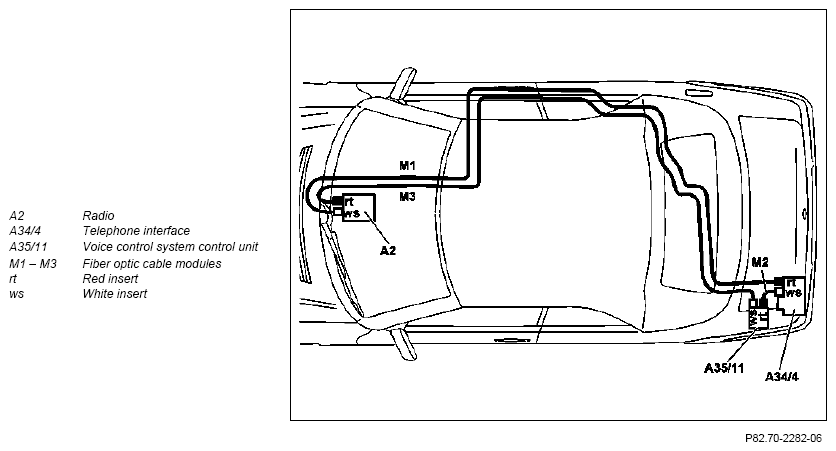

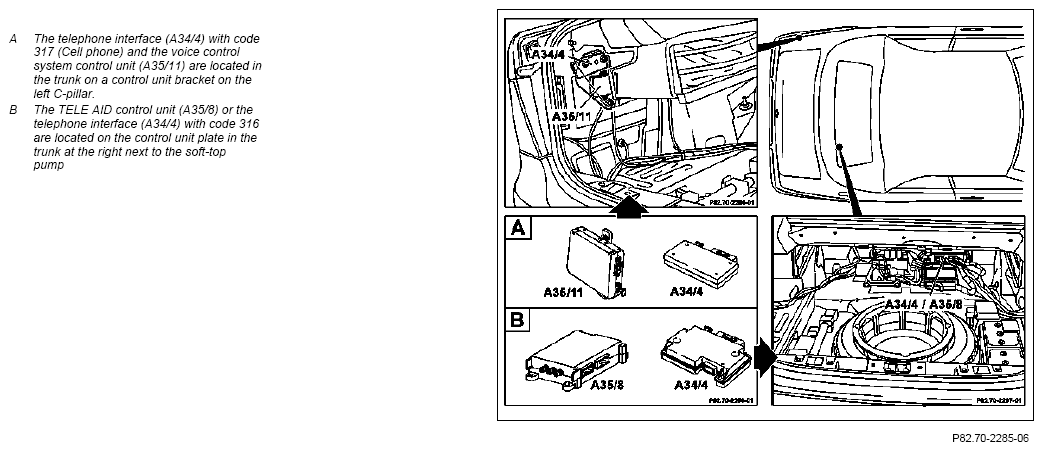

Actual configuration in the vehicle with cell phone (code 317) and voice control system (code 813)
For retrofitting a CD player with changer it is irrelevant whether the vehicle is selected with or without the voice control system (code 813). The maximum configuration is illustrated.
- Print out the actual configuration of the particular vehicle and use as the basis of the conversion.
