Notes on D2B ring - AH82.70-P-0001-03B

MODEL 210.2 as of 7/1/98 with CODE 316 (MB D-net telephone (D2B)) with CODE 347 (TELE AID emergency call system (D2B)) without CODE 317 (D-net portable CTEL (D2B)) without CODE 351 (Auto Pilot System (APS)) without CODE 813 (Voice control system (VCS [SBS]))

• The components in the D2B ring (station components) in this case are: - Radio (A2)
  • Telephone interface (A34/4) or TELE AID control unit (A35/8)
• The information in the D2B ring only flows in one direction (arrows). The information enters in the white insert (white) in a optical fiber module M1 and M2 and exits again in the red insert (red) at the next ring component. The D2B ring only is capable of functioning as a closed circuit.
  Fig 1: Identifying Radio Communication Diagram

  Courtesy of MERCEDES-BENZ USA

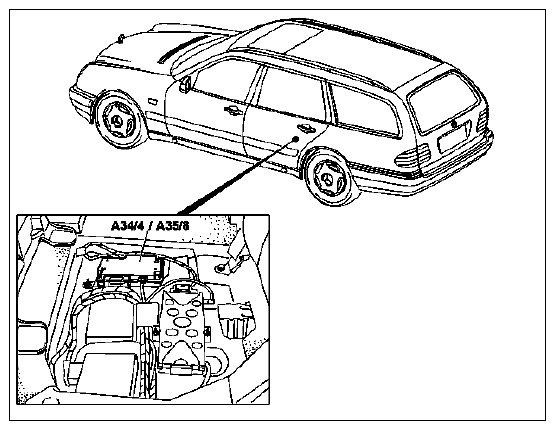

• The telephone interface (A34/4) or the TELE AID control unit (A35/8) is installed in the left rear.
• Before the D2B ring can be expanded it is first necessary to determine the current vehicle configuration
  Fig 2: Identifying TELE AID Control Unit And Telephone Interface

  Courtesy of MERCEDES-BENZ USA

Actual configuration in vehicle

• Print out the actual configuration and use as conversion template.
  Fig 3: TELE AID Control Unit And Telephone Interface Configuration Diagram

  Courtesy of MERCEDES-BENZ USA
