Remove/install main fuse of secondary air injection pump - AR54.15-P-0050MCU

MODEL 451.3/4 (except 451.39/49)

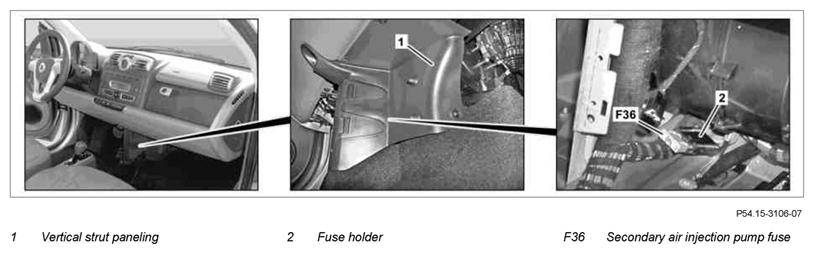

Fig 1: Identifying Main Fuse Of Secondary Air Injection Pump Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove vertical strut paneling (1)		AR68.00-P-1500MCC
2	Pull fuse of secondary air injection pump (F36) out of fuse holder (2)
3	Install in the reverse order
