Remove/install rear window wiper motor - AR82.30-P-6900MCC
MODEL 451.3

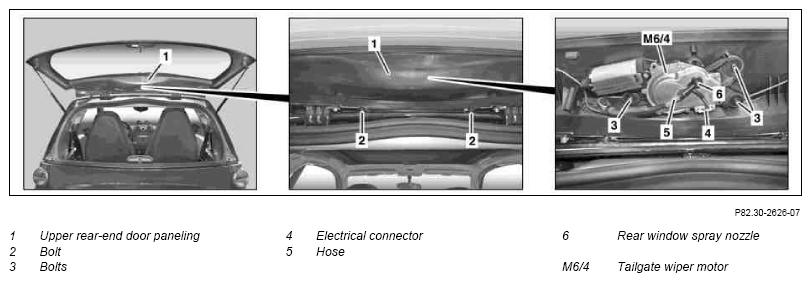

| Remove/install | |||
| 1 | Remove wiper arm of rear-end door | AR82.30-P-6910MCC | |
| 2 | Open upper rear-end door and remove bolts (2) | ||
| 3 | Unhook upper rear-end door paneling (1) and remove | ||
| 4 | Detach hose (5) from tailgate wiper motor (M6/4) | ||
| 5 | Detach electrical connector (4) on rear-end door wiper motor (M6/4) | ||
| 6 | Remove bolts (3) from tailgate wiper motor (M6/4) and remove tailgate wiper motor (M6/4) | ||
| 7 | Install in the reverse order | ||
| 8 | Perform function test on tailgate wiper motor (M6/4) | ||
| 9 | Adjust rear window spray nozzle (6) | AR82.35-P-6975MCC |
