Remove and install wiper arm - AR82.30-P-6100MCC
MODEL 451.3/4
| Remove/install | |||
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities. | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| 1 | Allow wiper motor to run in end position and switch off ignition | ||
| 2 | Remove paneling (1) from center piece in front of windshield | AR88.00-P-2792MCC | |
| 3 | Remove cap on nut (3) | ||
| 4 | Unscrew nut (3) on wiper arm (2) | *BA82.30-P-1002-01F | |

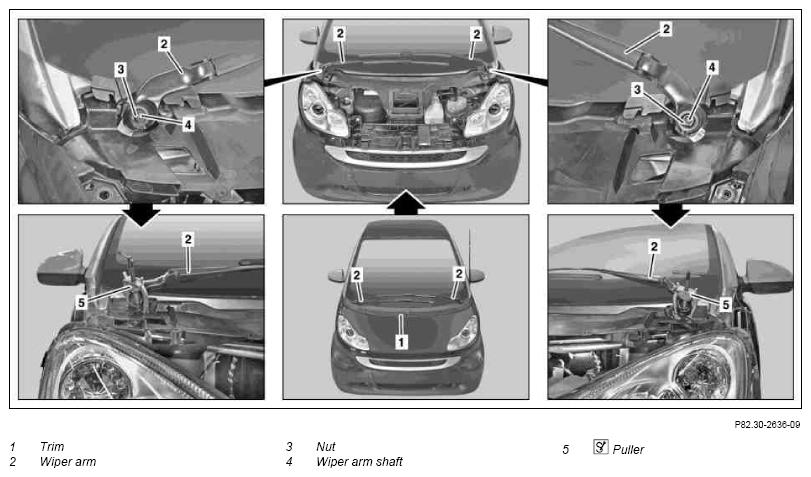

| 5 | Position puller (5) on wiper arm shaft (4) | Fig 2 | |
| 6 | Detach wiper arm (2) using puller (5) | Fig 2 | |
| 7 | Remove puller (5) | Fig 2 | |
| 8 | Remove wiper arm (2) | ||
| 9 | Install in the reverse order |
WINDSHIELD WIPER
| Number | Designation | Model 451.3 | Model 451.4 | |
|---|---|---|---|---|
| BA82.30-P-1002-01F | Nut for wiper arm on wiper shaft | Nm | 20 | 20 |
