Remove/install CMS front - AR62.10-P-1020MCU
MODEL 451.3/4
| Remove/install | |||

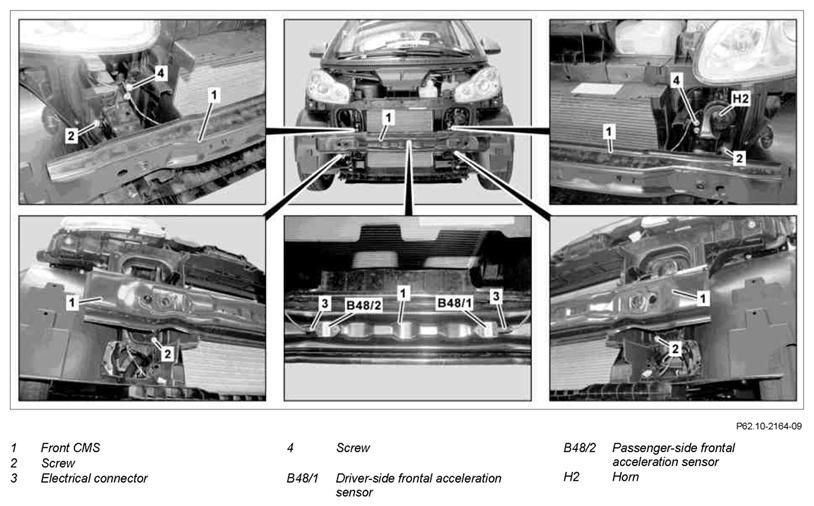

| 1 | Remove front CBS | AR88.00-P-1010MCC | |
| 2 | Disconnect electrical connector (3) from driver-side frontal acceleration sensor (B48/1) and passenger-side frontal acceleration sensor (B48/2) | ||
| 3 | Remove bolt (4) and lay horn (H2) down to side with electrical lines connected. | Only vehicles with code (V55) Twin-tone horn, a horn (H2) is also located on right of vehicle. | |
| 4 | Unscrew bolts (2) and remove front CMS (1) | ||
| 5 | Remove driver-side frontal acceleration sensor (B48/1) and passenger-side frontal acceleration sensor (B48/2) | When replacing front CMS (1). | AR91.60-P-0750MCU |
| 6 | Install in the reverse order |
