Remove/install radiator grille - AR88.40-P-4001MCC

MODEL 451.3/4 up to 19.3.12

Shown on front CBS with code (V07) Front fog lamps (FFO)

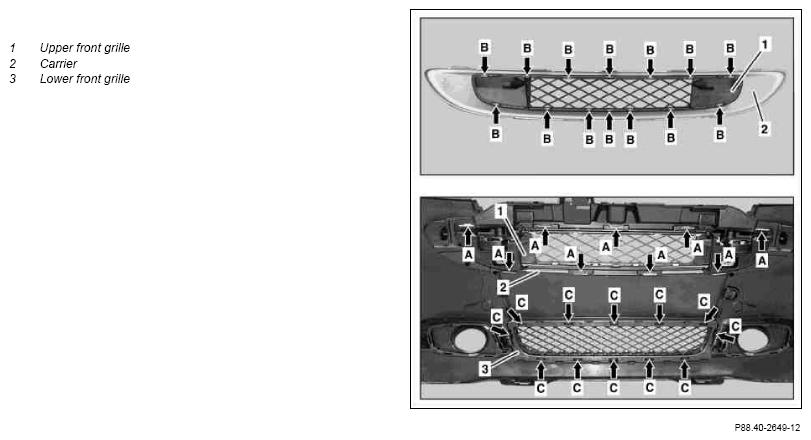

Fig 1: Identifying Radiator Grille Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove CBS front end and lay down on suitable subsurface		AR88.00-P-1010MCC
2	Unclip catch hook (arrows A) and remove carrier (2) with upper front grille (1)
3	Unclip catch hook (arrows B) and upper front grille (1) from carrier (2)
4	Unclip catch hook (arrows C) and remove lower front grille (3)
5	Install in the reverse order
