Remove/install inside opener cable on front door - AR72.10-P-1405MCC

MODEL 451.3/4

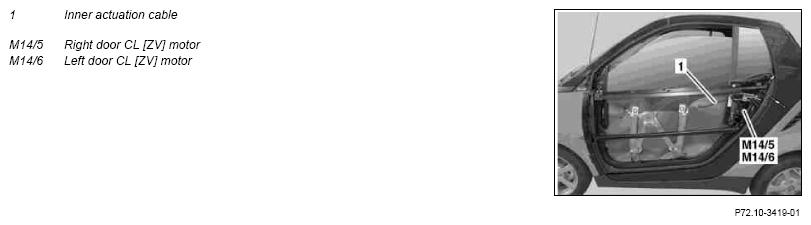

Fig 1: Identifying Inside Opener Cable On Front Door Remove/Install Components
G10978824Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove left and right door panel lining   AR72.10-P-6575MCC
2 Remove right door CL motor (M14/5) or left door CL motor (M14/6) and remove inner actuation cable (1).   AR72.10-P-4011MCC
3 Install in the reverse order
