Remove/install central locking motor on rear-end door - AR80.20-P-4005MCC
MODEL 451.3/4
Shown on model 451.3

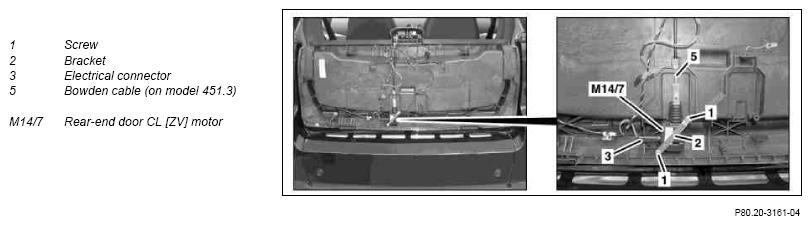

Fig 1: Identifying Central Locking Motor On Rear-End Door Remove/Install Components - Shown On Model 451.3
Shown on model 451.4

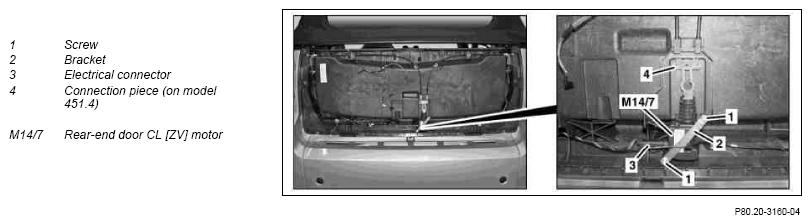

Fig 2: Identifying Central Locking Motor On Rear-End Door Remove/Install Components - Shown On Model 451.4
| Remove/install | |||
| 1 | Remove rear-end door paneling | AR72.20-P-1000MCC | |
| 2 | Disconnect electrical connector (3) from rear-end door CL motor (M14/7) | ||
| 3 | Unscrew bolts (1) and remove bracket (2) | ||
| 4 | Guide rear-end door CL motor (M14/7) upward, unhook Bowden cable (5) or connection piece (4) on rear-end door CL motor (M14/7) and remove rear-end door CL motor (M14/7) | ||
| 5 | Install in the reverse order | ||
| 6 | Check rear-end door CL motor (M14/7) for proper function |
