Retrofit subwoofer - AZ82.62-P-0004MCC

MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10

with CODE 516 (RADIO WITH USB INTERFACE)

without CODE P02 (car2go)

MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10

with CODE 527 (High-Line radio)

without CODE P02 (car2go)

MODEL 451.3/4 up to 8/30/10

with CODE C50 (smart radio 10)

without CODE P02 (car2go)

MODEL 451.3/4 up to 8/30/10

with CODE C57 (smart radio 9)

without CODE P02 (car2go)

MODEL 451.3/4

with CODE C08 (Radio preinstallation incl. rod antenna (FFO))

without CODE P02 (car2go)

	Remove
1	Remove left seat (1)
		MODEL 451.3 (except 451.39) as of 31.08.10, 451.4 (except 451.49) as of 31.08.10 with CODE 516 (RADIO WITH USB INTERFACE) except CODE 494 (USA version) except CODE P02 (car2go) MODEL 451.3 (except 451.39) as of 31.08.10, 451.4 (except 451.49) as of 31.08.10 with CODE 527 (Radio High-Line) except CODE 494 (USA version) except CODE P02 (car2go) MODEL 451.3/4 up to 30.08.10 with CODE C50 (smart radio 10) except CODE 494 (USA version) except CODE P02 (car2go) MODEL 451.3/4 up to 30.08.10 with CODE C57 (smart radio 9) except CODE 494 (USA version) except CODE P02 (car2go) MODEL 451.3/4 with CODE C08 (Radio preinstallation incl. rod antenna (FFO)) except CODE 494 (USA version) except CODE P02 (car2go)	AR91.10-P-1000MCC
		MODEL 451.3 (except 451.39) as of 31.08.10, 451.4 (except 451.49) as of 31.08.10 with CODE 494 (USA version) with CODE 516 (RADIO WITH USB INTERFACE) except CODE P02 (car2go) MODEL 451.3 (except 451.39) as of 31.08.10, 451.4 (except 451.49) as of 31.08.10 with CODE 494 (USA version) with CODE 527 (Radio High-Line) except CODE P02 (car2go) MODEL 451.3/4 up to 30.08.10 with CODE 494 (USA version) with CODE C50 (smart radio 10) except CODE P02 (car2go) MODEL 451.3/4 up to 30.08.10 with CODE 494 (USA version) with CODE C57 (smart radio 9) except CODE P02 (car2go) MODEL 451.3/4 with CODE 494 (USA version) with CODE C08 (Radio preinstallation incl. rod antenna (FFO)) except CODE P02 (car2go)	AR91.10-P-1010MCU
	Install

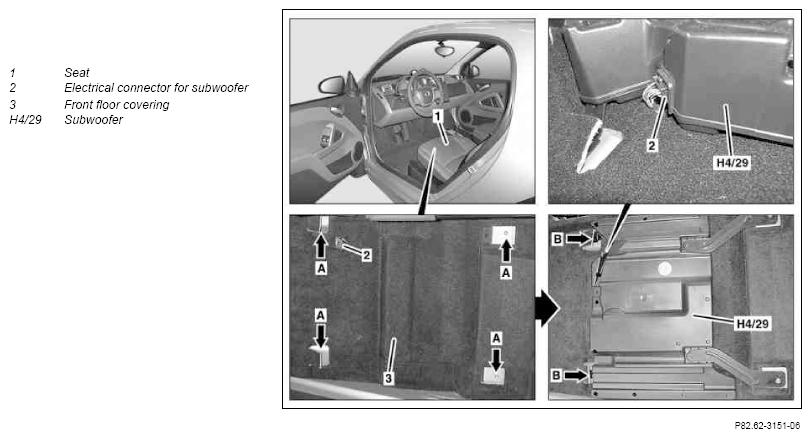

2	Lift up front floor covering (3) and the route electrical connector for subwoofer (2) upwards through opening in front floor covering (3)
3	Fold back front floor covering (3) in marked area (arrows B) and position subwoofer (H4/29) at attachment points (arrows A) of left seat (1)
4	Connect electrical connector for subwoofer (2) to subwoofer (H4/29)
5	Perform function test on subwoofer (H4/29)
6	Install left seat (1)
		MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10 with CODE 516 (RADIO WITH USB INTERFACE) without CODE 494 (US version) without CODE P02 (car2go) MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10 with CODE 527 (High-Line radio) without CODE 494 (US version) without CODE P02 (car2go) MODEL 451.3/4 up to 8/30/10 with CODE C50 (smart radio 10) without CODE 494 (US version) without CODE P02 (car2go) MODEL 451.3/4 up to 8/30/10 with CODE C57 (smart radio 9) without CODE 494 (US version) without CODE P02 (car2go) MODEL 451.3/4 with CODE C08 (Radio preinstallation incl. rod antenna (FFO)) without CODE 494 (US version) without CODE P02 (car2go)	AR91.10-P-1000MCC
		MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10 with CODE 494 (US version) with CODE 516 (RADIO WITH USB INTERFACE) without CODE P02 (car2go) MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10 with CODE 494 (US version) with CODE 527 (High-Line radio) without CODE P02 (car2go) MODEL 451.3/4 up to 8/30/10 with CODE 494 (US version) with CODE C50 (smart radio 10) without CODE P02 (car2go) MODEL 451.3/4 up to 8/30/10 with CODE 494 (US version) with CODE C57 (smart radio 9) without CODE P02 (car2go) MODEL 451.3/4 with CODE 494 (US version) with CODE C08 (Radio preinstallation incl. rod antenna (FFO)) without CODE P02 (car2go)	AR91.10-P-1010MCU
8	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Add CODE C54 (Sound system 2).
10	Document retrofitted equipment in VeDoc	Attach note "Subwoofer retrofitted as per AZ82.62-P-0004MCC " .

Part no.	Designation	Quantity
KG 99	Subwoofer	1
