Retrofit sound system - AZ82.62-P-0002MCC

MODEL 451.3 (except 451.39), 451.4 (except 451.49)

with CODE C08 (Radio preinstallation incl. rod antenna (FFO))

without CODE P02 (car2go)

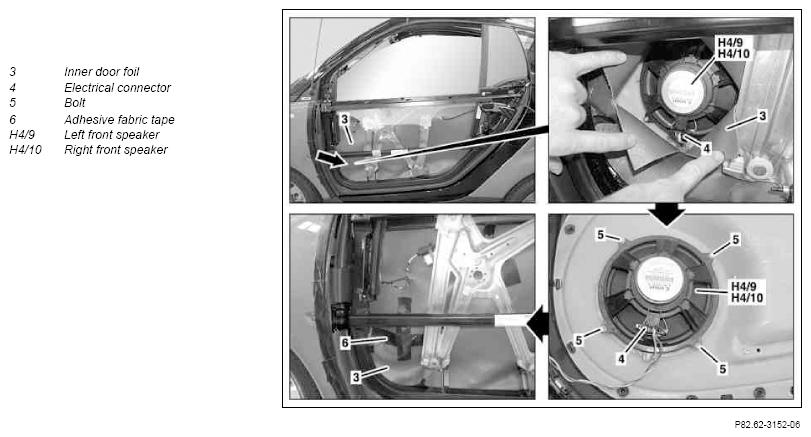

Fig 1: Identifying Sound System Related Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

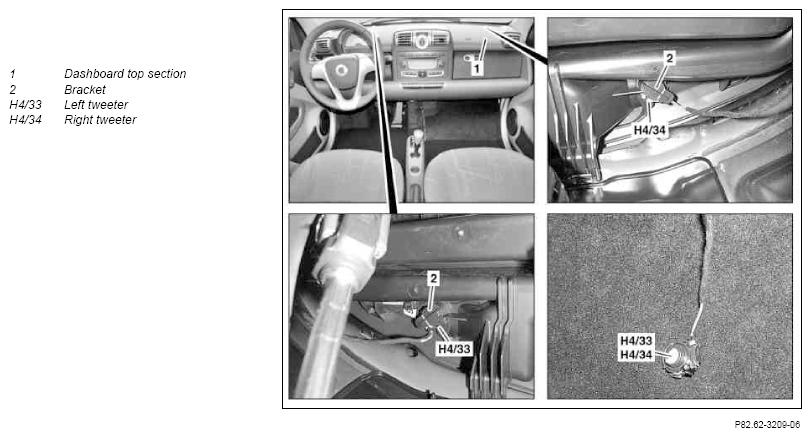

Fig 2: Identifying Sound System Related Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Move seats to the rear
2	Remove door paneling from front doors
			AR72.18-P-1000MCC
3	Carefully cut into inner door foil (3) with a knife in marked area (arrow) until installation location of left front speaker (H4/9) and right front speaker (H4/10) is accessible
	Install
4	Position left front speaker (H4/9) and right front speaker (H4/10) at the respective front door and screw on with screws/bolts (5)
5	Connect electrical connector (4) to left front speaker (H49) and right front speaker (H4/10)
6	Align inner door foil (3) and reseal using a suitable adhesive fabric tape (6)
7	Install door paneling
			AR72.18-P-1000MCC
8	Place left tweeter (H4/33) and right tweeter (H4/34) into footwell and connect electrical connector
9	Insert left tweeter (H4/33) and right tweeter (H4/34) from below into bracket (2) on upper section of instrument panel (1)	The left tweeter (H4/33) and the right tweeter (H4/34) must audibly click into place in the bracket (2).
10	Move seats to starting position
11	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Add CODE C54 (Sound system).
12	Document retrofitted equipment in VeDoc	Attach note "Sound system retrofitted as per AZ82.62-P-0002MCC " .
13	Perform function test
