Remove/install park pawl switch - AR26.19-P-0050MCU
TRANSMISSION 717.4 in MODEL 451.3/4
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||

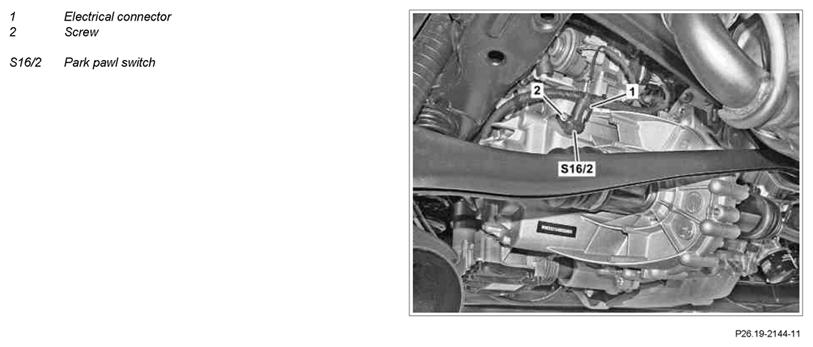

| 2 | Disconnect electrical connector (1) from park pawl switch (S16/2). | ||
| 3 | Unscrew bolt (2) and remove park pawl switch (S16/2) | ||
| 4 | Install in the reverse order | ||
| 5 | Read out fault memory, erase if necessary | When replacing the park pawl switch (S16/2). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04MCC |
