Remove/install cable for parking shift lock - AR26.60-P-1000MCU
TRANSMISSION 717.4 in MODEL 451.3/4
| Remove/install | |||
| 1 | Remove electronic selector lever module control unit (N15/5) | AR26.60-P-0630MCU | |
| 2 | Remove cargo area floor cover | AR68.20-P-4810MCU | |
| 3 | Remove air filter housing | AR09.10-P-1150MCU | |

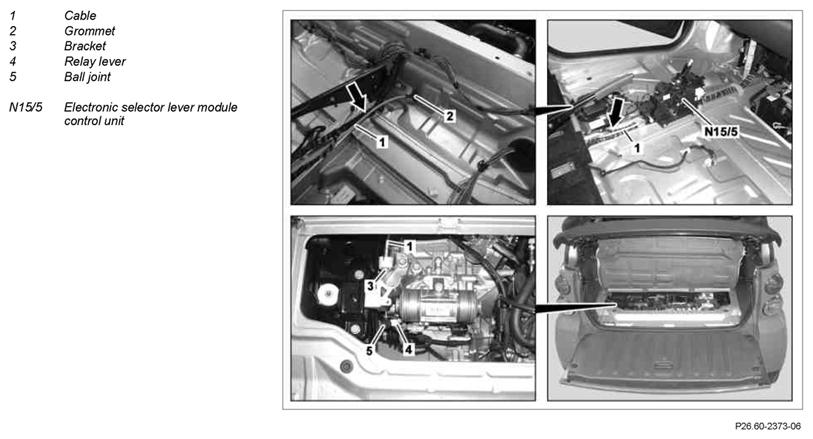

| 4 | Remove cable ties on cable (1) | ||
| 5 | Pry off ball joint (5) with an open end wrench size 12 on relay lever (4) of the park pawl and remove cable (1) from bracket (3) | ||
| 6 | Press grommet (2) out of the body towards the engine compartment and remove cable (1) to the rear | ||
| 7 | Install in the reverse order |
