Remove/install wheels, rotate if necessary - AP40.10-P-4050CW

MODEL 204, 207

Left illustration

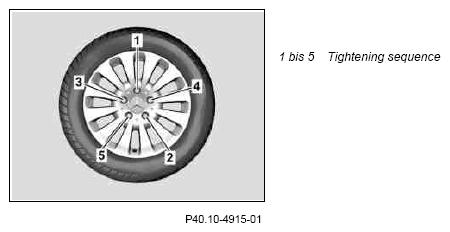

Fig 1: Wheels Bolts Tightening Sequence

Courtesy of MERCEDES-BENZ USA

Right figure

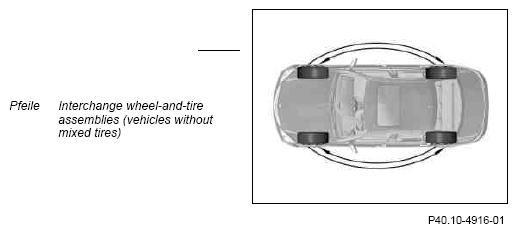

Fig 2: Wheel And Tire Rotation Pattern

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Information on tires/rims		AH40.10-P-9411-01A
	Remove
1	Raise vehicle with vehicle lift
2	Remove hubcaps	Vehicles with hubcaps
3	Unscrew wheel bolts and remove wheel-and-tire assemblies	For model 204.9 Remove wheel-and-tire assemblies with wheel lift only. The brake disks and complete wheels can otherwise be damaged.
	Check
4	Check tires for signs of damage and make sure that they are in good condition		AP40.10-P-4051EW
	Install
5	Clean and check wheel bolt connection components, then protect against corrosion		AP40.10-P-4050-01A
		Before mounting a wheel-and-tire assembly all the operation steps listed in the linked description must be conducted carefully. The complete wheel can otherwise work its way loose from the vehicle.
		Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
6	Change round wheel-and-tire assemblies on front and rear axles	If necessary, subject to separate repair order and only for vehicles without mixed tires. Maintain running direction of wheel-and-tire assemblies. Otherwise handling characteristics and handling comfort may be impaired and tire wear increased.
7	Mount wheel-and-tire assembly and tighten wheel bolts	For model 204.9 Remove wheel-and-tire assemblies with wheel lift only. The brake disks and complete wheels can otherwise be damaged. Observe the tightening sequence (1 to 5) and tightening torque.
		MODEL 204, 207 Wheel bolt	*BA40.10-P-1001-01M
8	Lower vehicle
9	Correct tire pressure of front and rear axle tires		AP40.15-P-4061A
		In the event of unusual tire pressure loss: ↓ Determine and rectify cause, subject to separate repair order.
10	Mount hubcaps	Vehicles with hubcaps Check for correct positioning of hubcap to valve and for correct seating. Otherwise the valve will be damaged or the hubcap will be lost.
11.1	Activate the tire pressure monitoring system	With CODE 470 (Tire pressure monitor (Basis)) or with CODE 475 (Tire pressure monitor (Schrader))
		MODEL 204	AR54.30-P-1000-02RAD
		MODEL 207 Only for wheel-and-tire assembly change, tire replacement or a change in tire pressure.	AR54.30-P-1000-02RAU
11.2	Activate tire pressure loss warning	Except CODE 470 (Tire pressure monitor (standard)) and except CODE 475 (Tire pressure monitor)
		MODEL 204	AR54.30-P-1000-02RAC
		MODEL 207 Only for wheel-and-tire assembly change, tire replacement or a change in tire pressure.	AR54.30-P-1000-02RAE

WHEELS

Number	Designation		MODEL 204.0/2/3 except CODE P98	MODEL 204.0/2/3 with CODE P98
BA40.10-P-1001-01M	Wheel bolt	Nm	130	180

WHEELS

Number	Designation		Model 204.9	Model 207
BA40.10-P-1001-01M	Wheel bolt	Nm	150	130

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste, hot lubrication 1 kg, DBL 6879.20	A 000 989 76 51
