Check TIREFIT tire sealant - AP40.10-P-4054R
Model 117, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 190, 197, 203, 204, 205, 207, 209, 211, 212, 216, 217, 218, 219, 221, 222, 230, 231, 240, 242, 245, 246, 251, 292, 414

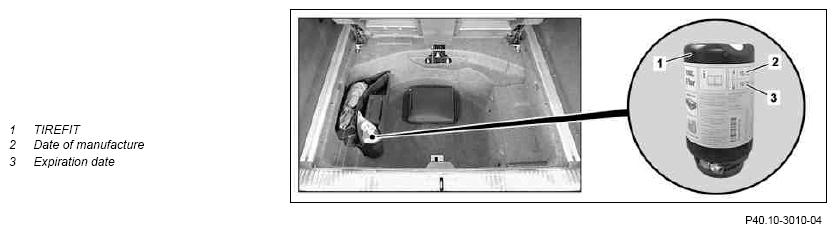

TIREFIT in trunk recess, shown on model 211.2, valid for model 117, 156, 164, 166, 168, 170, 171, 172, 176, 203.0/7, 204.0/2/3, 205, 207, 209, 211, 212, 216, 217, 218, 219, 221, 222, 230, 231, 240, 242, 246, 251, 292

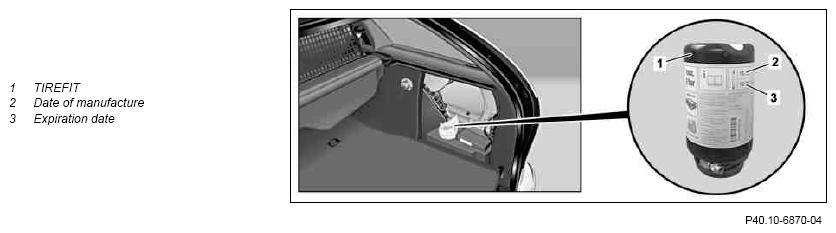

TIREFIT behind side trim shown on left on model 169, valid for model 163, 169, 190, 197, 204.9, 245, 414

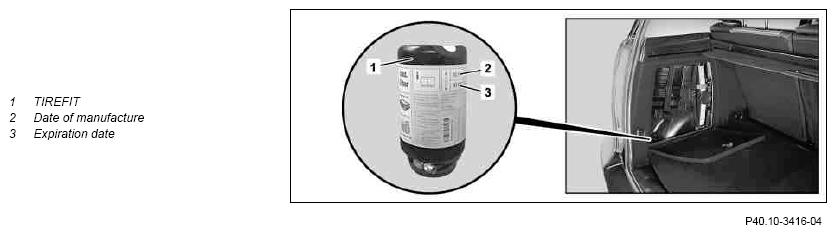

TIREFIT behind side trim shown on right on model 203.2
| Risk of poisoning caused by swallowing the TIREFIT emulsion. Risk of injury caused by skin contact and eye contact with the TIREFIT emulsion. Risk of fire caused by ignition of the TIREFIT emulsion | Do not swallow or come into contact with the TIREFIT tire sealant, which is an emulsion of rubber and terpene phenolic resin. No open flames or open light sources. | AS40.10-Z-0001-01A | |
| TIREFIT tire sealant | AH40.10-P-0001-01A | ||
| Remove | |||
| 1 | Remove TIREFIT (1) | ||
| Check | |||
| 2 | Check whether TIREFIT (1) was used | If TIREFIT (1) was used: ↓ Replace TIREFIT (1), invoice as an additional operation. |
|
| 3 | Check expiration date (3) of TIREFIT (1) | If the expiration date (3) has been reached, or if the expiration date (3) is before the expected due date for the next service: ↓ Replace TIREFIT (1), invoice as an additional operation. |
|
| Install | |||
| 4 | Insert TIREFIT (1) |
