Remove, install tire pressure monitoring system control - AR40.15-P-0100MCU
MODEL 451.3/4
| Remove/install | |||
| 1 | Adjust driver seat to the rear | ||

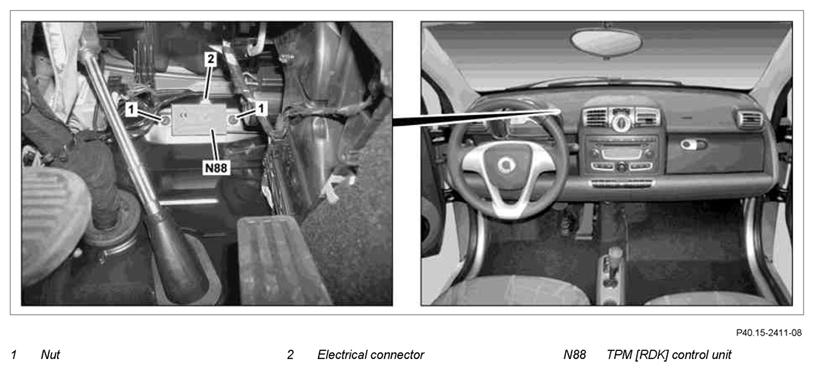

| 2 | Unscrew nuts (1) and remove TPM [RDK] control unit (N88) until the electrical connector (2) is accessible | ||
| 3 | Disconnect electrical connector (2) on TPM [RDK] control unit (N88) and remove TPM [RDK] control unit (N88) | ||
| 4 | Install in the reverse order | ||
| 5 | Read out fault memory, erase and program in comfort pressures using STAR DIAGNOSIS | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04MCC | ||
| 6 | Press the TPM switch in the cockpit switch group and as a result recalibrate the tire pressure monitoring system |
