Carry out distance and comparison measurements on front and axles-rear - AR40.30-P-0402MCC
MODEL 451.3/4
Initial test
Distance measurement and comparative measurement
| Removing | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle using the vehicle lift and remove underfloor paneling | ||
| Measure | |||

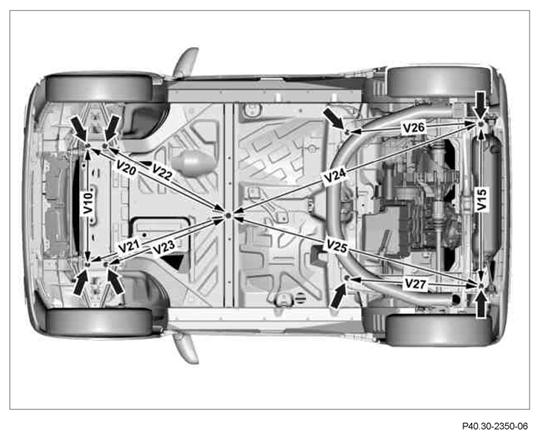

| 2 | Perform distance and comparative measurement (as shown) and compare with specified values | Other detachable parts which prevent the distance and comparative measurement from being performed must be removed if necessary. |
*BE40.30-P-1001-10A |
| Figure | |||
| Install | |||
| 3 | Install underfloor panelings and lower the vehicle with the vehicle lift |
TEST VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT
| Number | Designation | Model 451 | ||
|---|---|---|---|---|
| BE40.30-P-1001-10A | Dimension | V1 | mm | - |
| V2 | mm | - | ||
| V3 | mm | - | ||
| V4 | mm | - | ||
| V5 | mm | - | ||
| V6 | mm | - | ||
| V7 | mm | - | ||
| V8 | mm | - | ||
| V9 | mm | - | ||
| V10 | mm | 650 (± 2) | ||
| V11 | mm | - | ||
| V12 | mm | - | ||
| V13 | mm | - | ||
| V14 | mm | - | ||
| V15 | mm | 890 (± 2) | ||
| V16 | mm | - | ||
| V17 | mm | 1512 (± 2) | ||
| V18 | mm | 2125 (± 2) | ||
| V19 | mm | 2125 (± 2) | ||
| V20 | mm | 890 (± 2) | ||
| V21 | mm | 800 (± 2) | ||
| V22 | mm | 805 (± 2) | ||
| V23 | mm | 705 (± 2) | ||
| V24 | mm | 1486 (± 2) | ||
| V25 | mm | 1452 (± 2) | ||
| V26 | mm | 738 (± 2) | ||
| V27 | mm | 738 (± 2) | ||
| - | - | |||
