Balancing wheels - AR40.10-P-1040MCC

MODEL 451.3/4

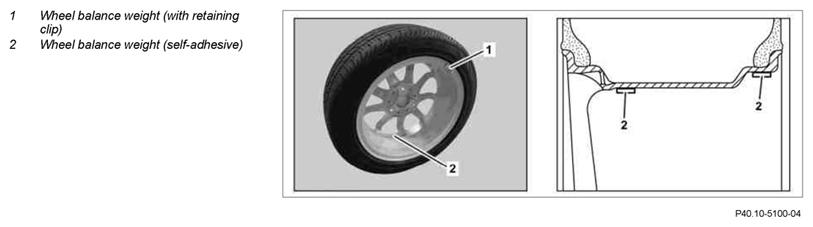

Fig 1: Identifying Wheel Balance Weight

Courtesy of MERCEDES-BENZ USA

	Balancing
1	Remove wheel balance weights (with retaining clip) (1) or wheel balance weights (self-adhesive) (2)	Use wheel balance weight (self-adhesive) (2) for: Cramped installation conditions Conditions caused by the construction which rule out the use of wheel balance weights (with retaining clip) (1) Customer request
2	If necessary clean wheels, attach to stationary balancing machine and balance dynamically to 0 g for each side of the wheel
