Remove/install front stabilizer bar link rod - AR32.35-P-3328MCC

MODEL 451.3/4

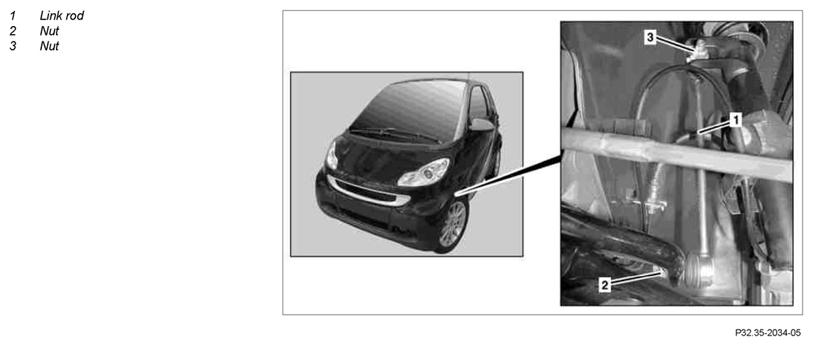

Fig 1: Identifying Front Stabilizer Bar Link Rod Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

11.4.08

Special tool for releasing nut on link rod, added

Step 2

	Remove/install
1	Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Raise vehicle with vehicle lift	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
2	Unscrew nuts (2, 3) on left or right link rod (1)	Replace the self-locking nuts (2, 3). To make access easier, turn the steering at the wheel. Counterhold threaded stud of link rod (1).	Figure
			Figure
			*BA32.20-P-1001-02I
			*BA32.20-P-1004-02I
3	Remove link rod (1)
4	Install in the reverse order

FRONT AXLE STABILIZER BAR

Number	Designation		Model 451.3/4
BA32.20-P-1001-02I	Self-locking nut, link rod to stabilizer bar	Nm	58
BA32.20-P-1004-02I	Nut, link rod to suspension strut	Nm	58
