Remove/install support of front axle carrier - AR33.10-P-0002MEV

MODEL 451.391/491

MODIFICATION NOTES

15.11.13

Screw, high voltage battery to body

BA54.10-P-1002-01H

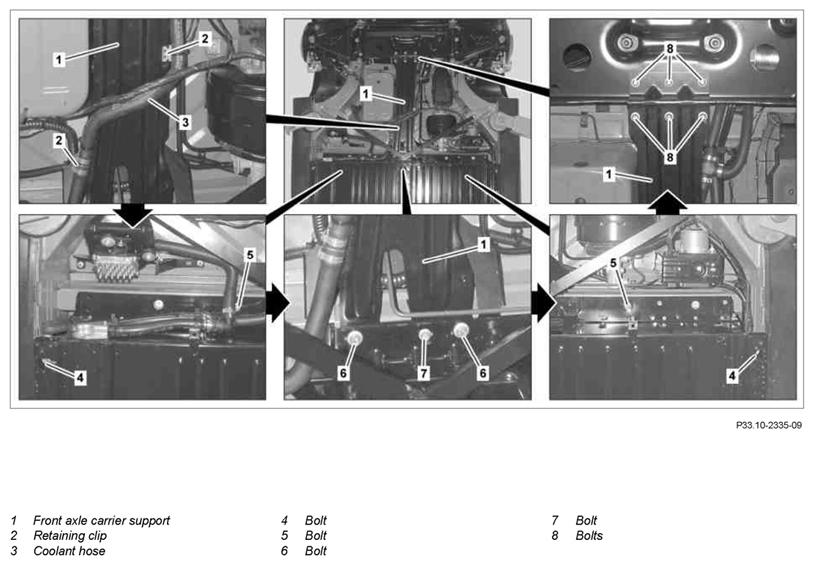

Fig 1: Identifying Support Of Front Axle Carrier Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Raise vehicle with vehicle lift	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
2	Remove underfloor panels
3	Unclip retaining clip (2) for coolant hose (3) from support for front axle carrier (1)	: Check retaining clip (2) for damage, replace, if necessary.
4	Unscrew bolts (4) approx. 3 turns	Bolt, high-voltage battery to body	*BA54.10-P-1002-01H
5	Unscrew bolts (5, 6)	Bolt, high-voltage battery to body	*BA54.10-P-1002-01H
6	Unscrew screw/bolt (7)	Bolt, support, front axle carrier to body	*BA33.10-P-1003-01D
7	Remove bolts (8) and remove upper section of front axle carrier support (1)	Bolt, support, front axle carrier to front axle carrier	*BA33.10-P-1002-01D
8	Guide front axle carrier support (1) out forwards and take off	: Insert front axle carrier support (1) above the coolant hose (3) and position on the body as well as on the front axle carrier.
9	Install in the reverse order

FRONT AXLE CARRIER

Number	Designation		Model 451.391/491
BA33.10-P-1002-01D	Bolt, support, front axle carrier to front axle carrier	Nm	23

FRONT AXLE CARRIER

Number	Designation		Model 451.391/491
BA33.10-P-1003-01D	Bolt, support, front axle carrier to body	Nm	23

BATTERY

Number	Designation				Model 451.391/491
BA54.10-P-1002-01H	Bolt, high-voltage battery to body	M6		Nm	11
		M8	Stage 1	Nm	20
			Stage 2	∠0	90
